1. Product Overview

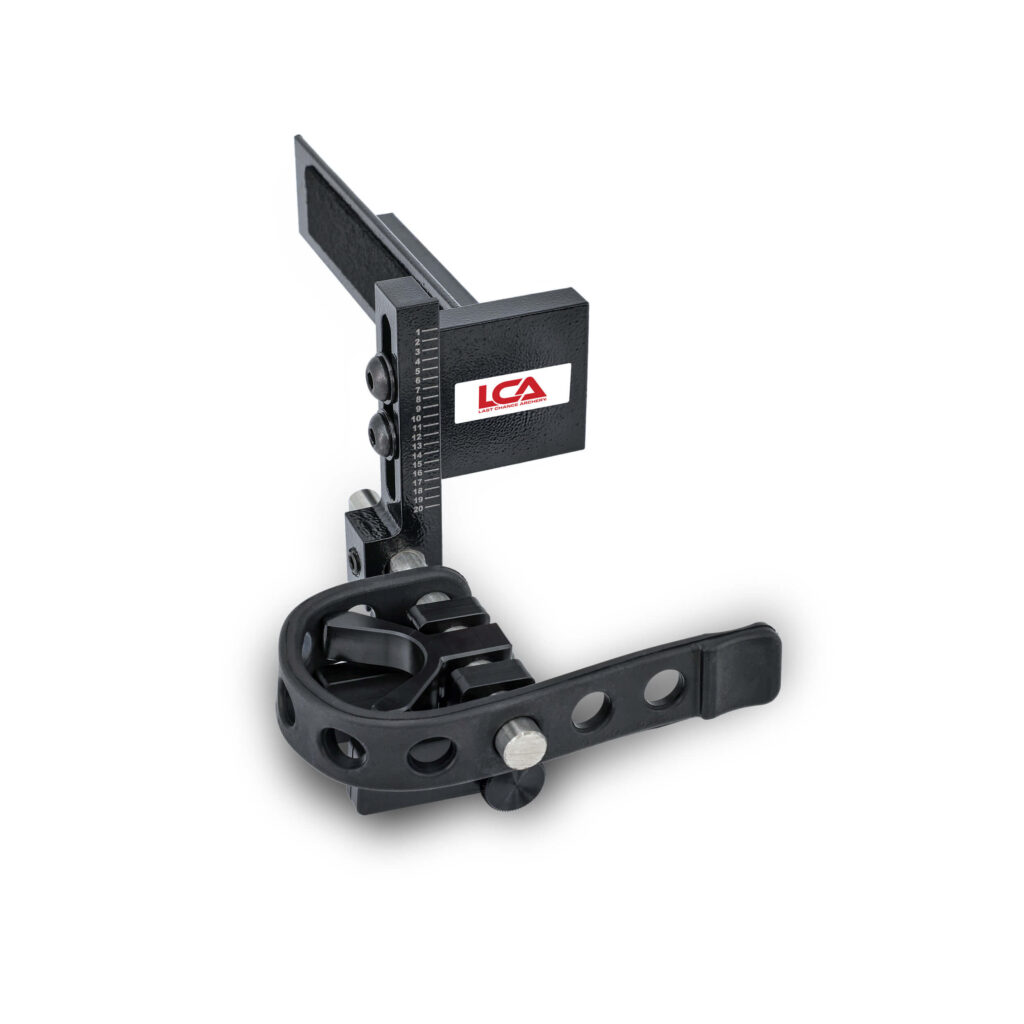

The Precision Bow Holder is a new, upgraded bow holder designed for the Gen 1 LCA Draw Board.

• Replaces the original simple rubber-coated rod with a sophisticated, stable grip system.

• Eliminates leaning, movement, and instability issues during tuning.

• Standard vs. Ultimate versions:

  • Standard: For LCA bow presses that only work with compound bows.

  • Ultimate: For LCA presses that accommodate both compound bows and crossbows.

⚠️ If you upgrade to the Draw Board 2.0, this Precision Bow Holder is already included.

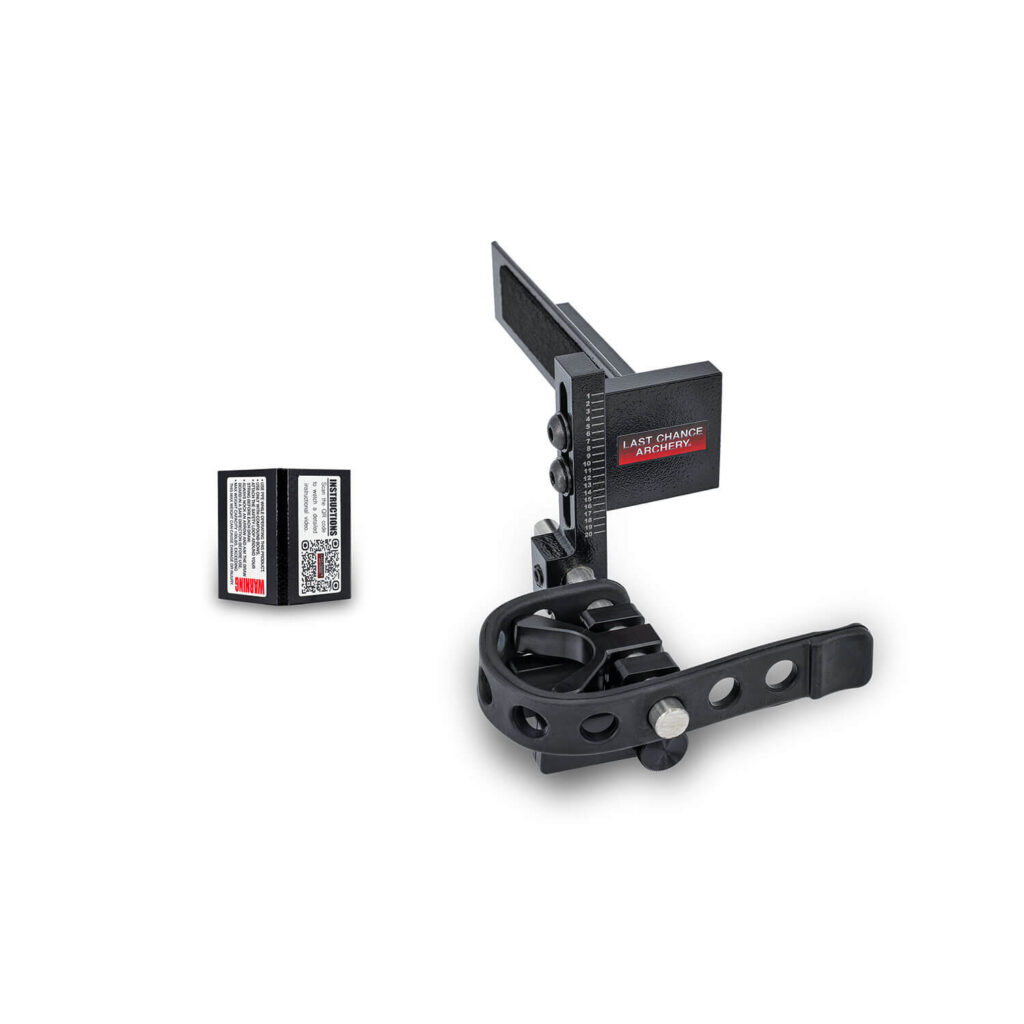

2. What’s Included

Inside the box, you should find:

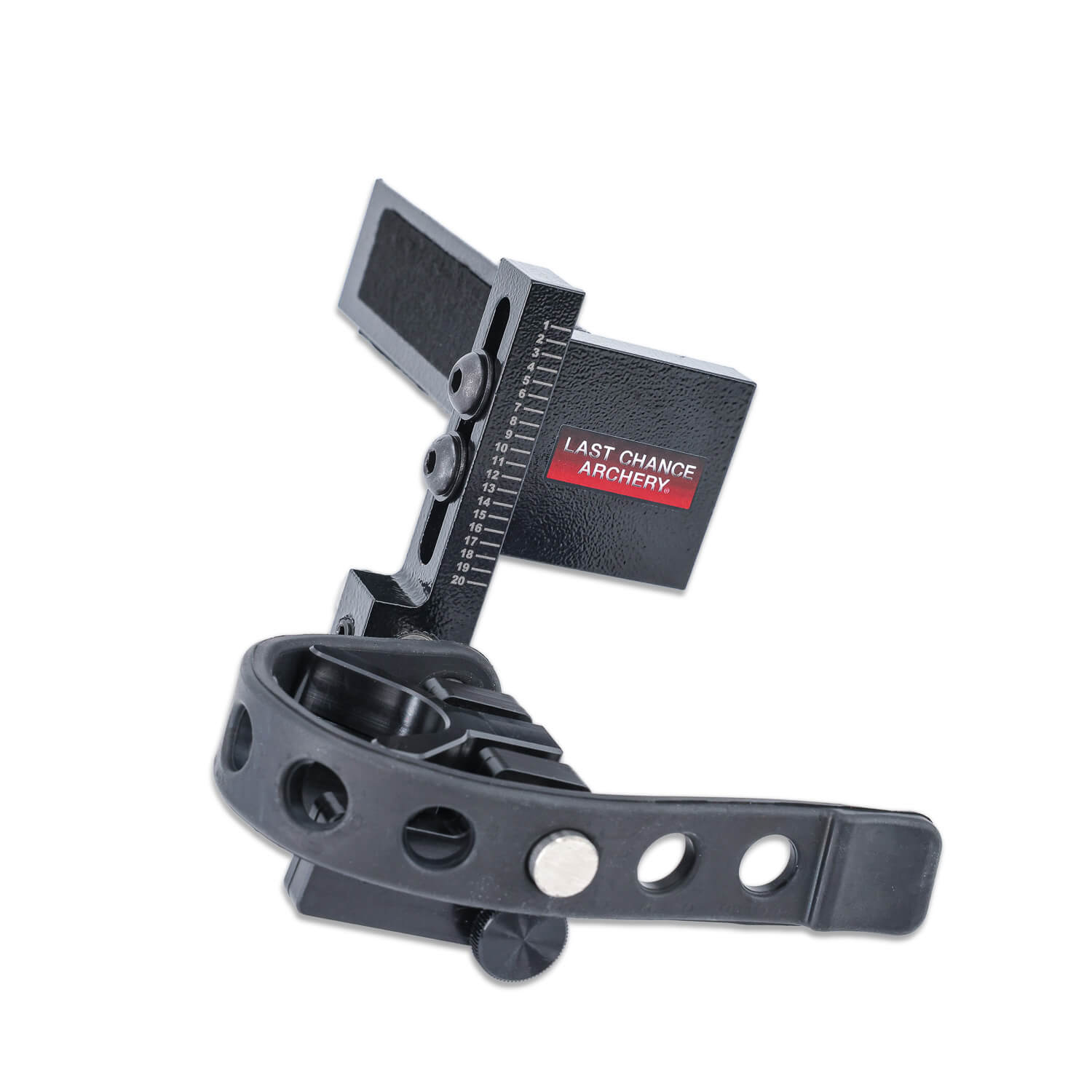

• Assembled Precision Bow Holder

• Spacer (alignment bar for Gen 1 Draw Board)

• Felt space filler (for tightening bracket fit, if needed)

• Bolt pack: 2 lag bolts + 2 washers (for optional bench/table mounting)

If any of these items are missing, contact LCA immediately to request replacements.

3. Installation

Step 1: Spacer Installation (Gen 1 Draw Board)

• Slide the included spacer onto your Gen 1 draw board bracket.

• Orientation does not affect performance (stickers can face up for aesthetics).

• The spacer ensures the rope of the draw board aligns dead center with the bow holder.

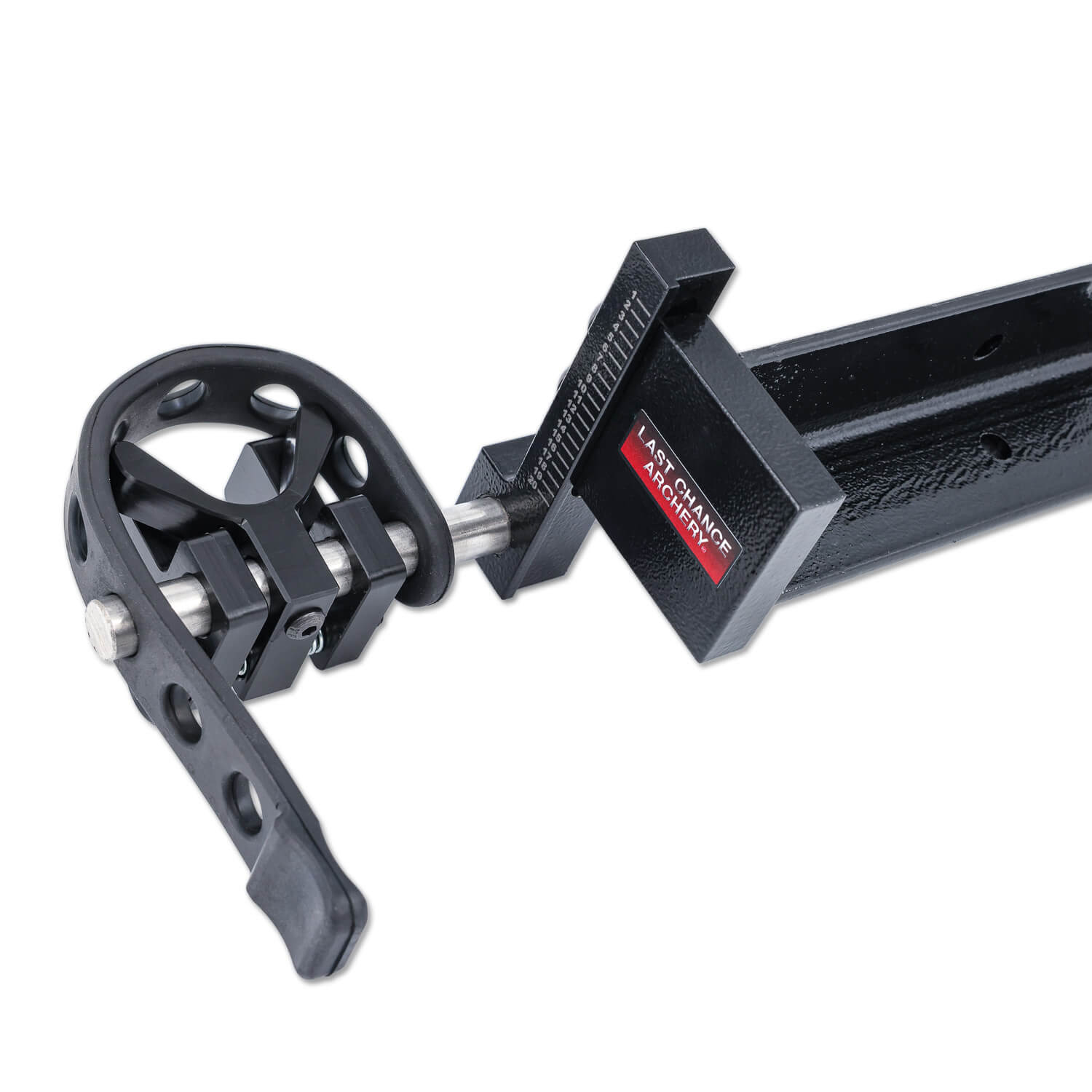

Step 2: Mounting the Bow Holder

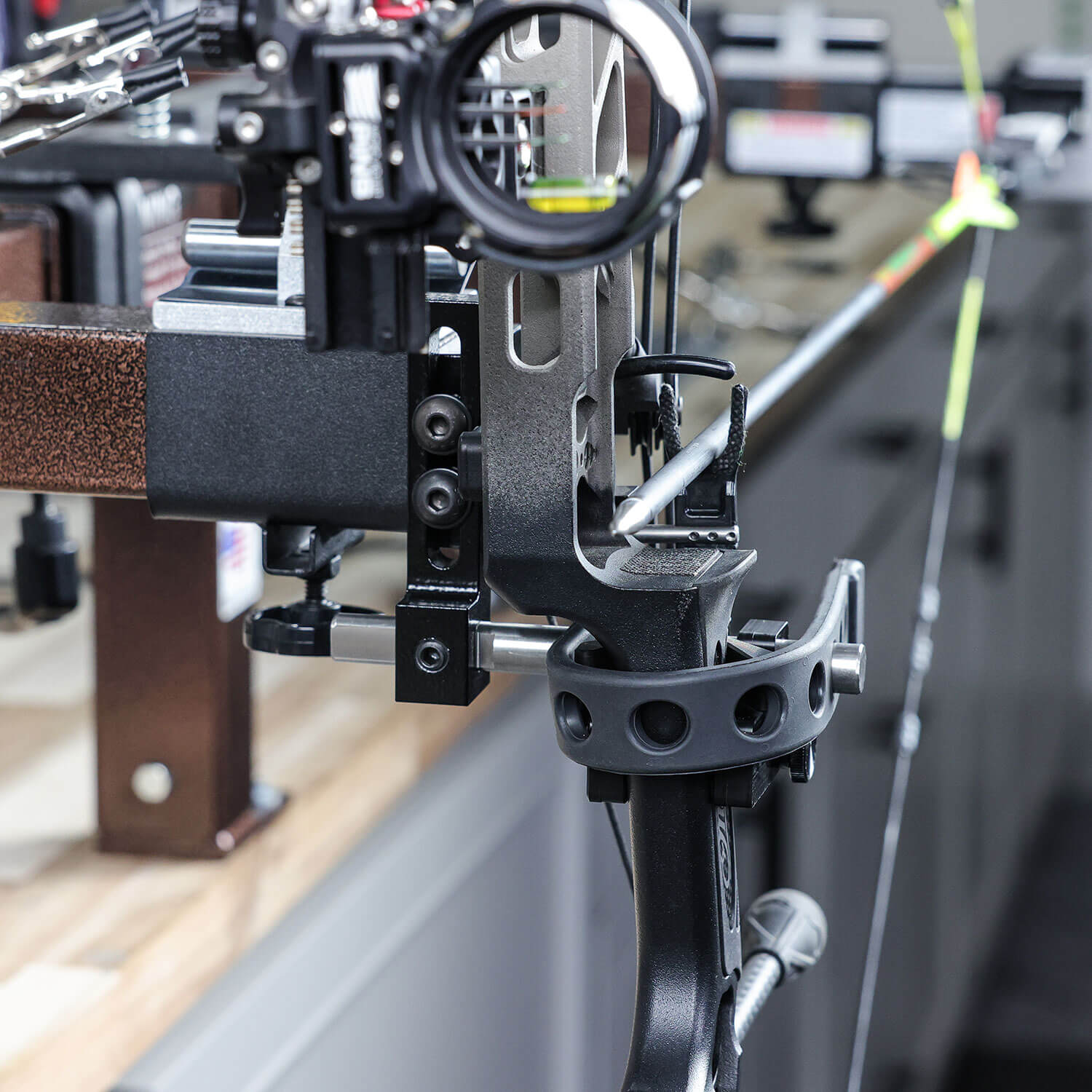

1. Slide the assembled bow holder into the bow press tubing.

2. Test fit: If the bracket feels loose, cut and apply the felt space filler to one side, bottom, or back until the fit is snug.

3. Keep any leftover filler for future adjustments.

Step 3: Bench/Table Mounting (Optional)

• If you prefer mounting to a bench or table edge, use the lag bolts + washers.

• ⚠️ Always drill pilot holes to prevent cracking the wood surface before installing lag bolts.

4. Operation

Bow Installation

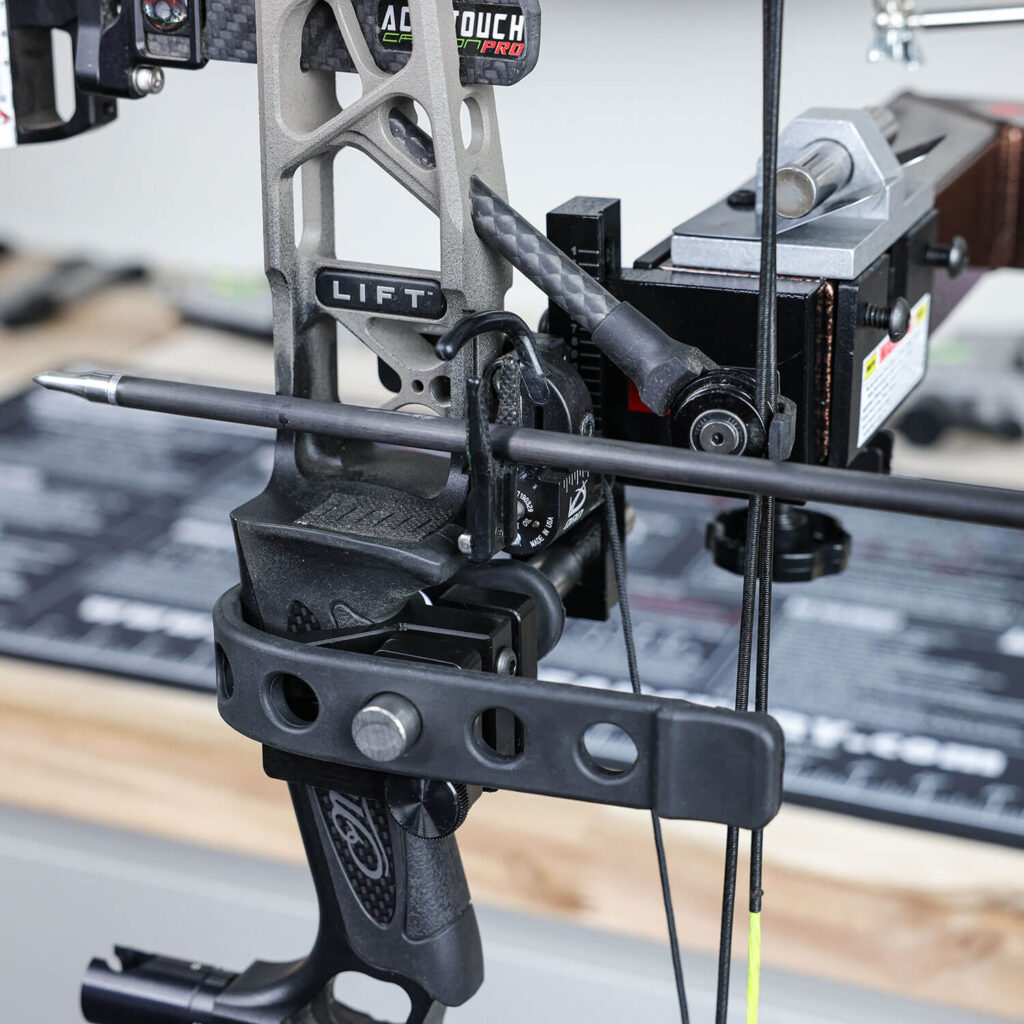

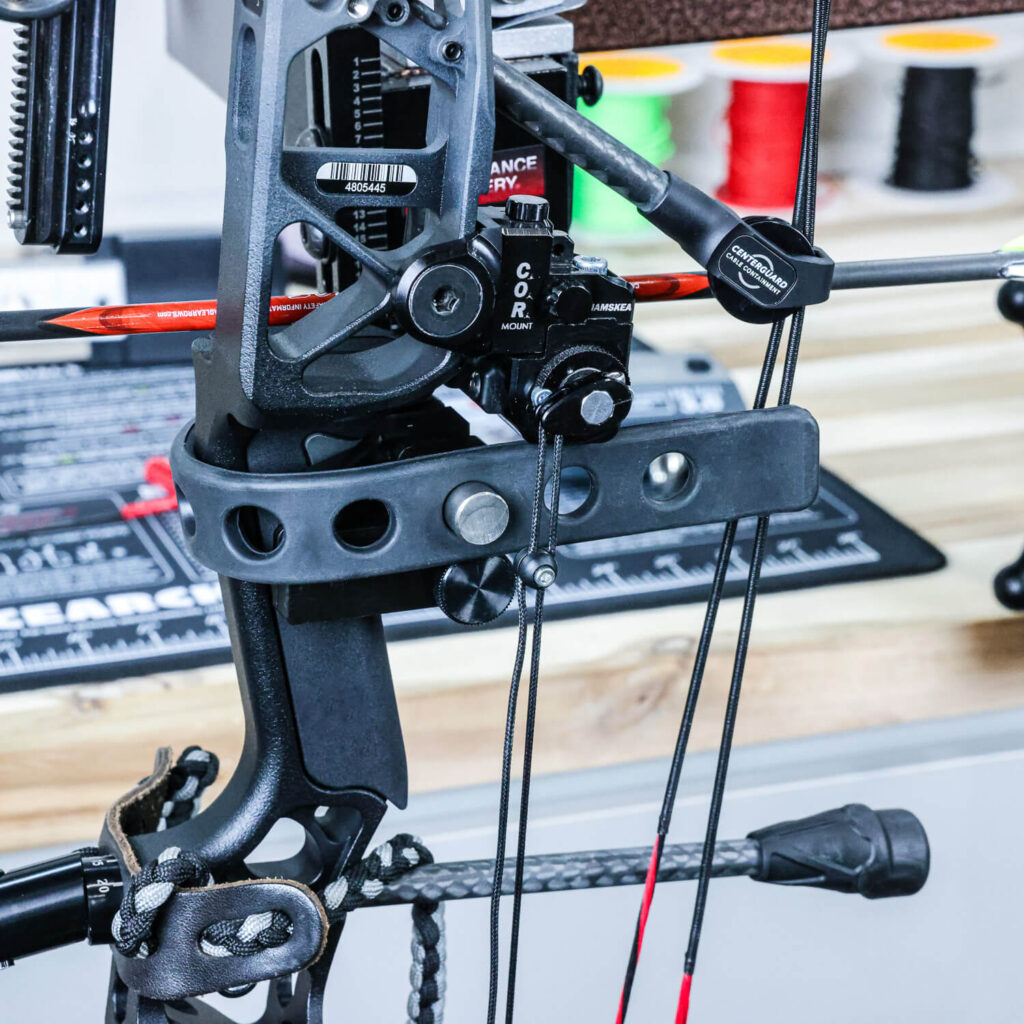

1. Place bow grip into the custom bow gripper.

2. Adjust the side plates until they lightly compress against the grip — mimicking natural hand pressure.

   • ⚠️ Do not overtighten; the bow should still float slightly.

3. Secure with the rubber strap, adjusting to appropriate tightness.

Features & Adjustments

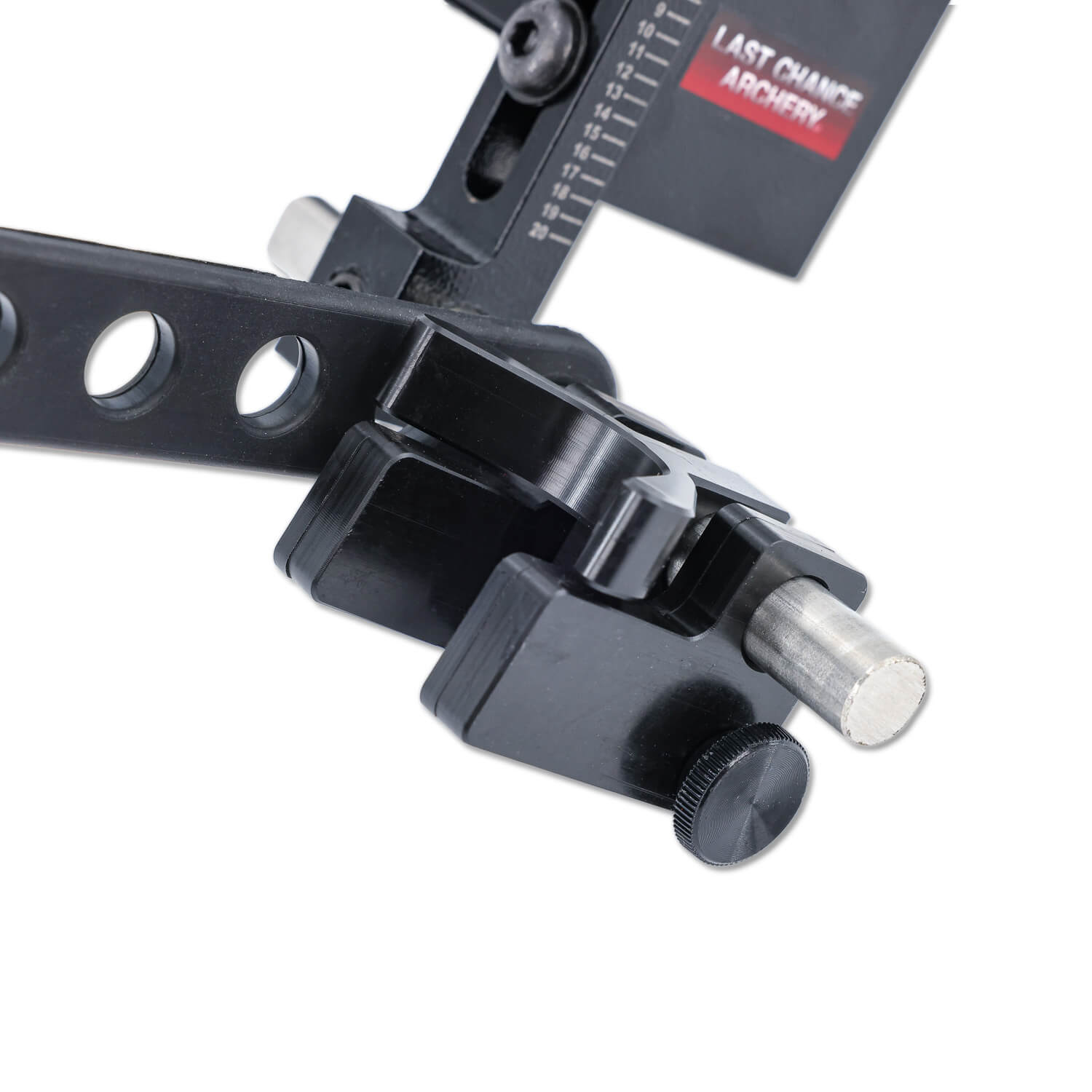

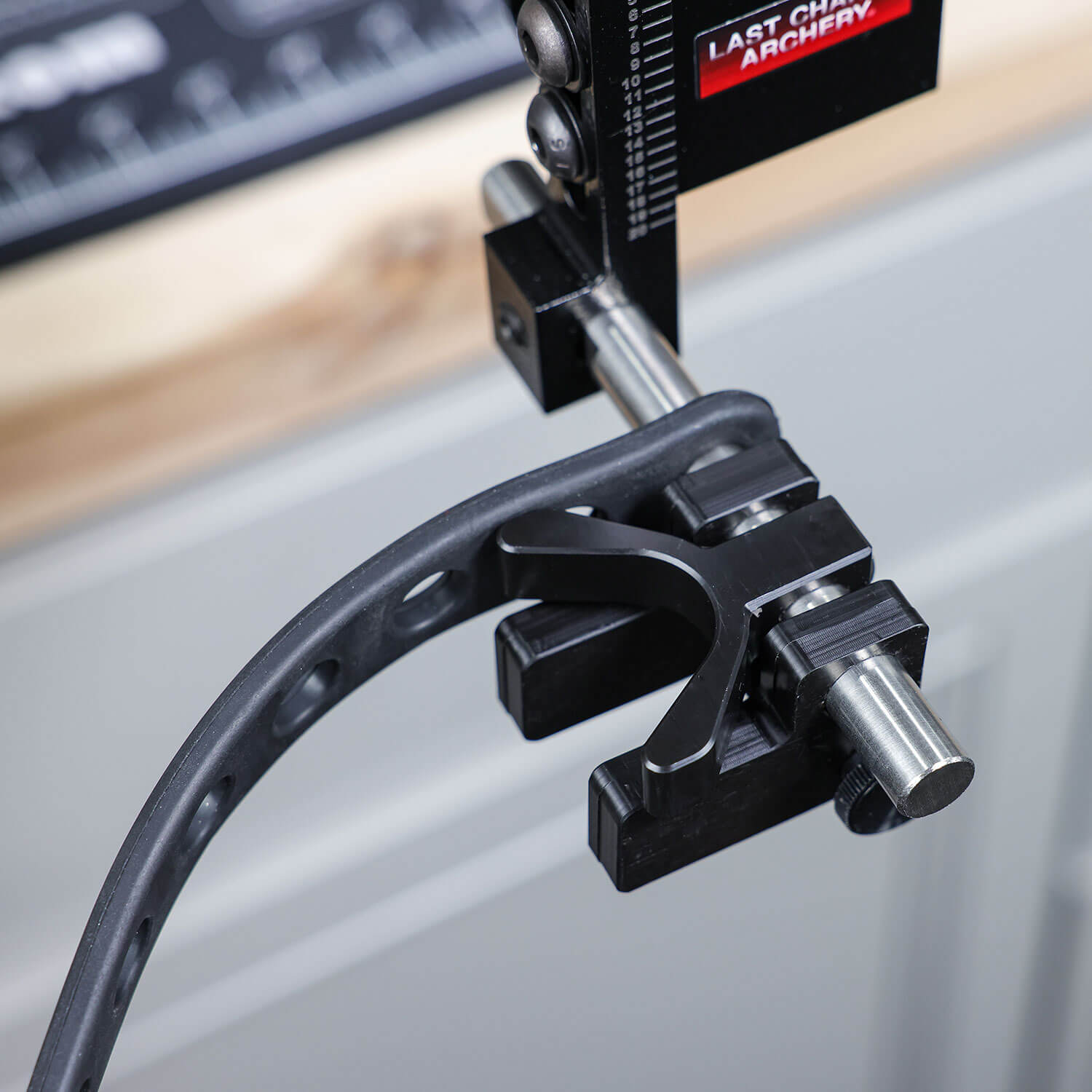

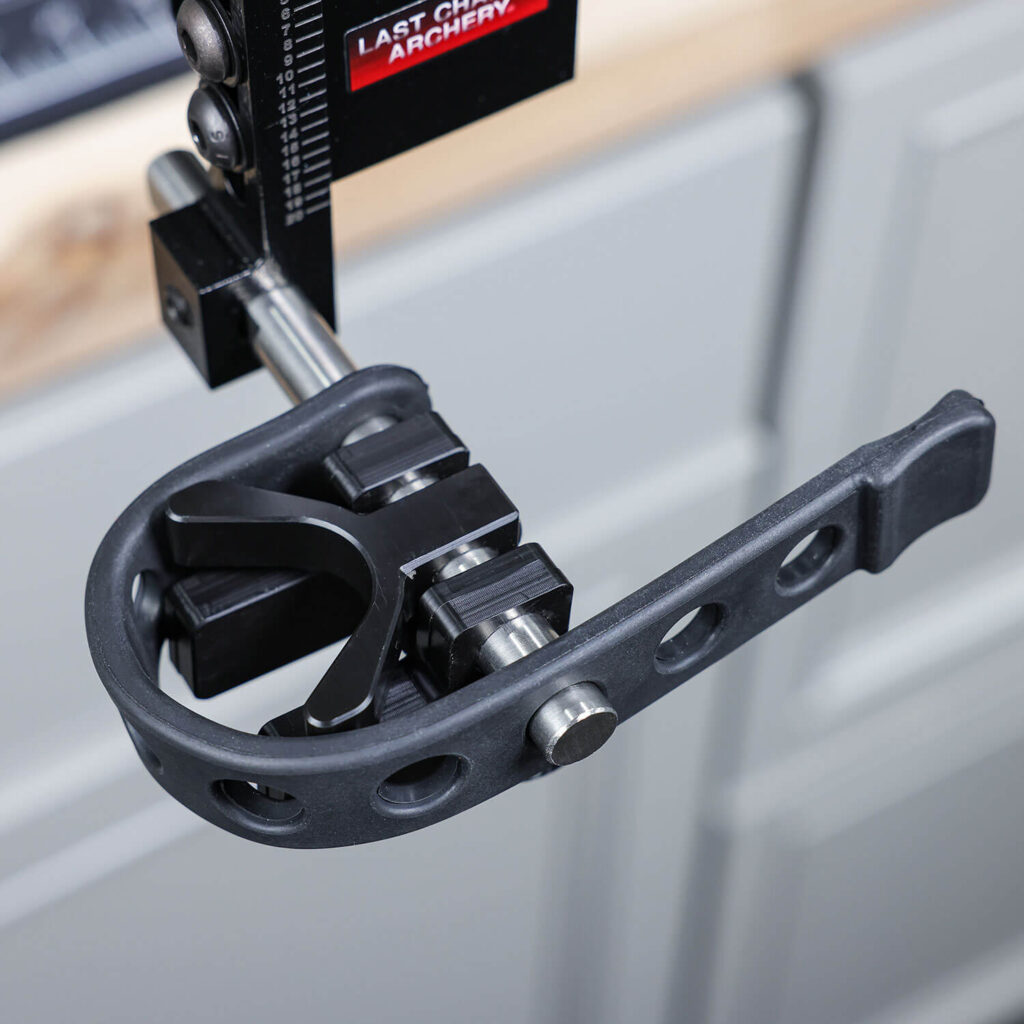

• Custom Bow Gripper: Designed to mimic natural hand contact points; tested across multiple bow grip designs for universal fit.

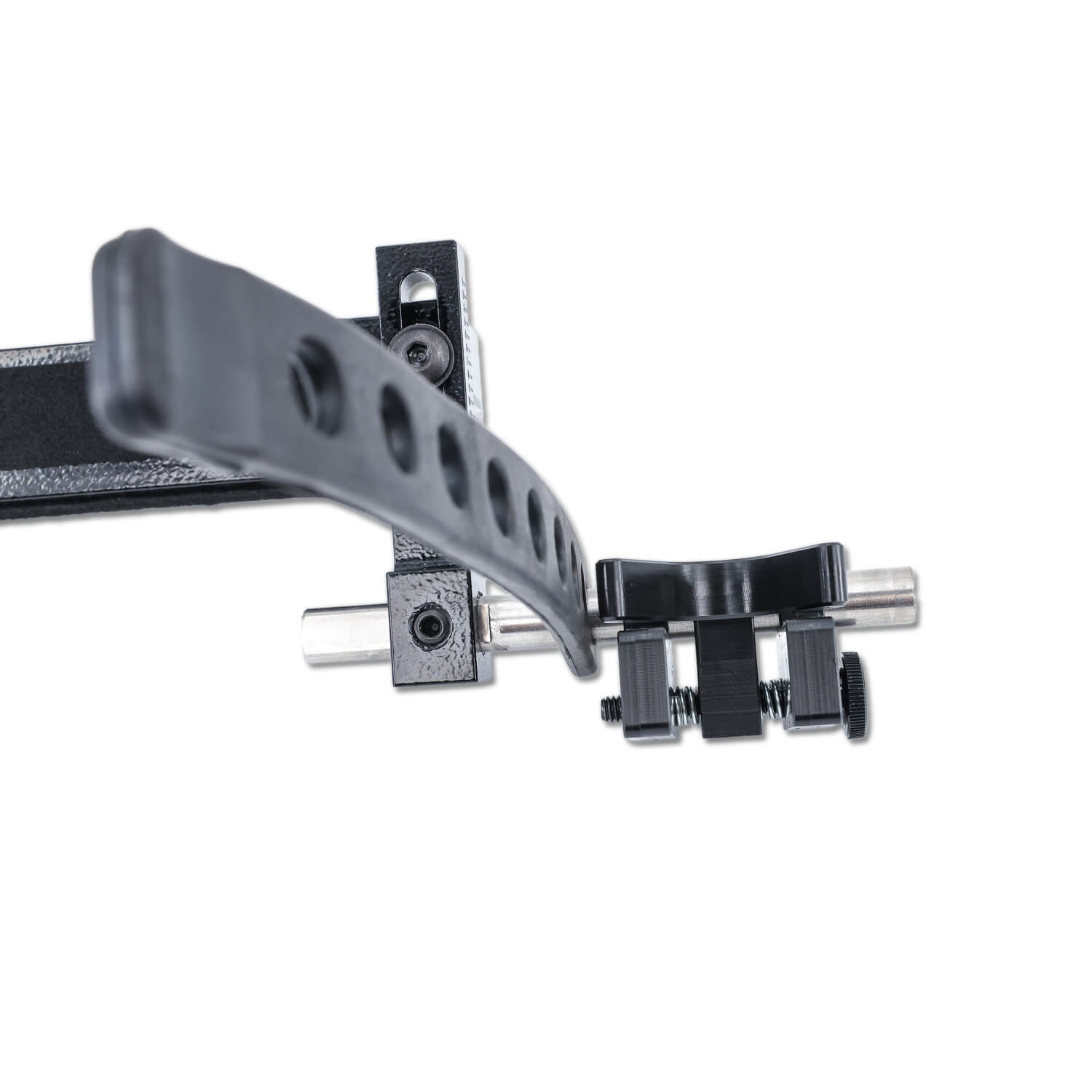

• Side Plates with Spring: Apply light lateral pressure, preventing the bow from tipping.

• Rubber Strap: Securely locks bow without overstressing grip.

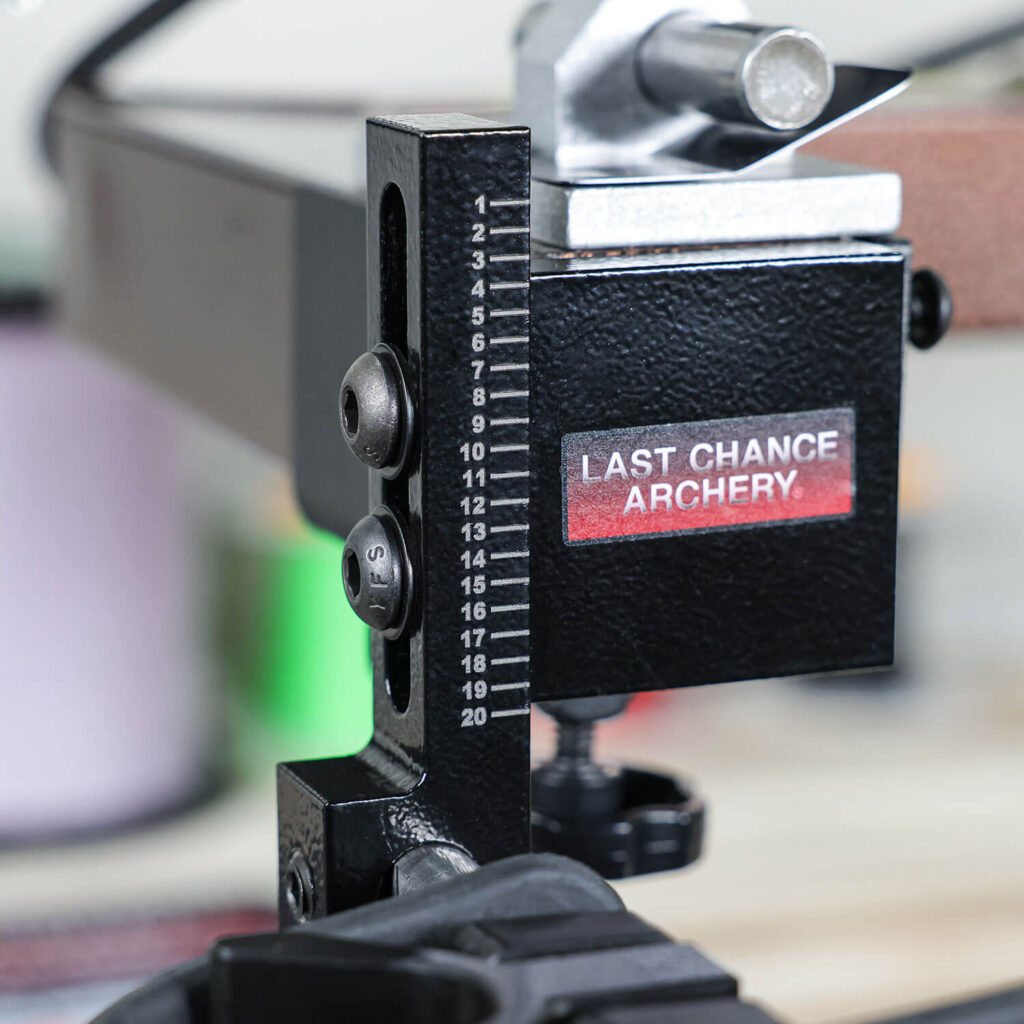

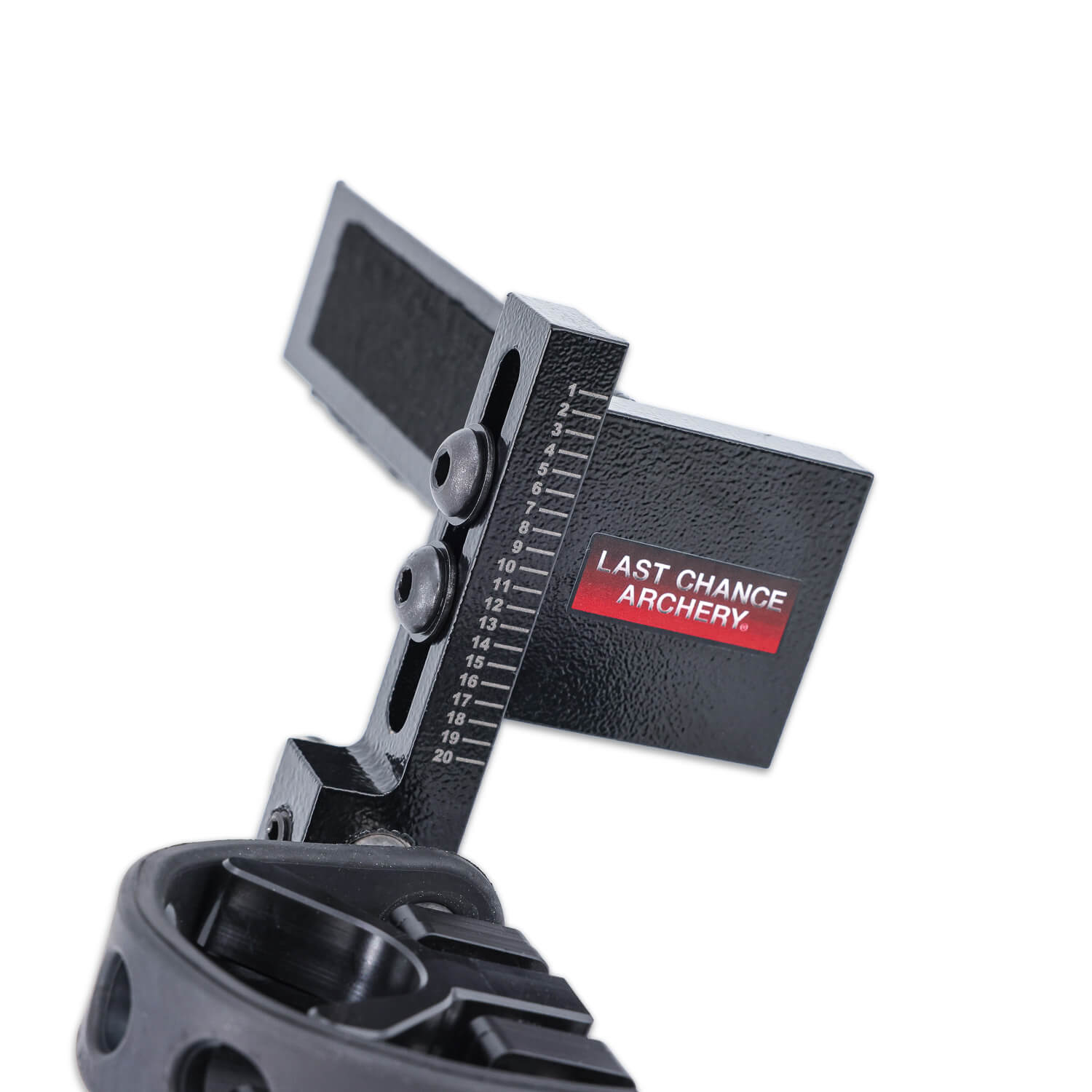

• Elevation Adjustment Bar: Solid steel, fully adjustable up/down for custom alignment.

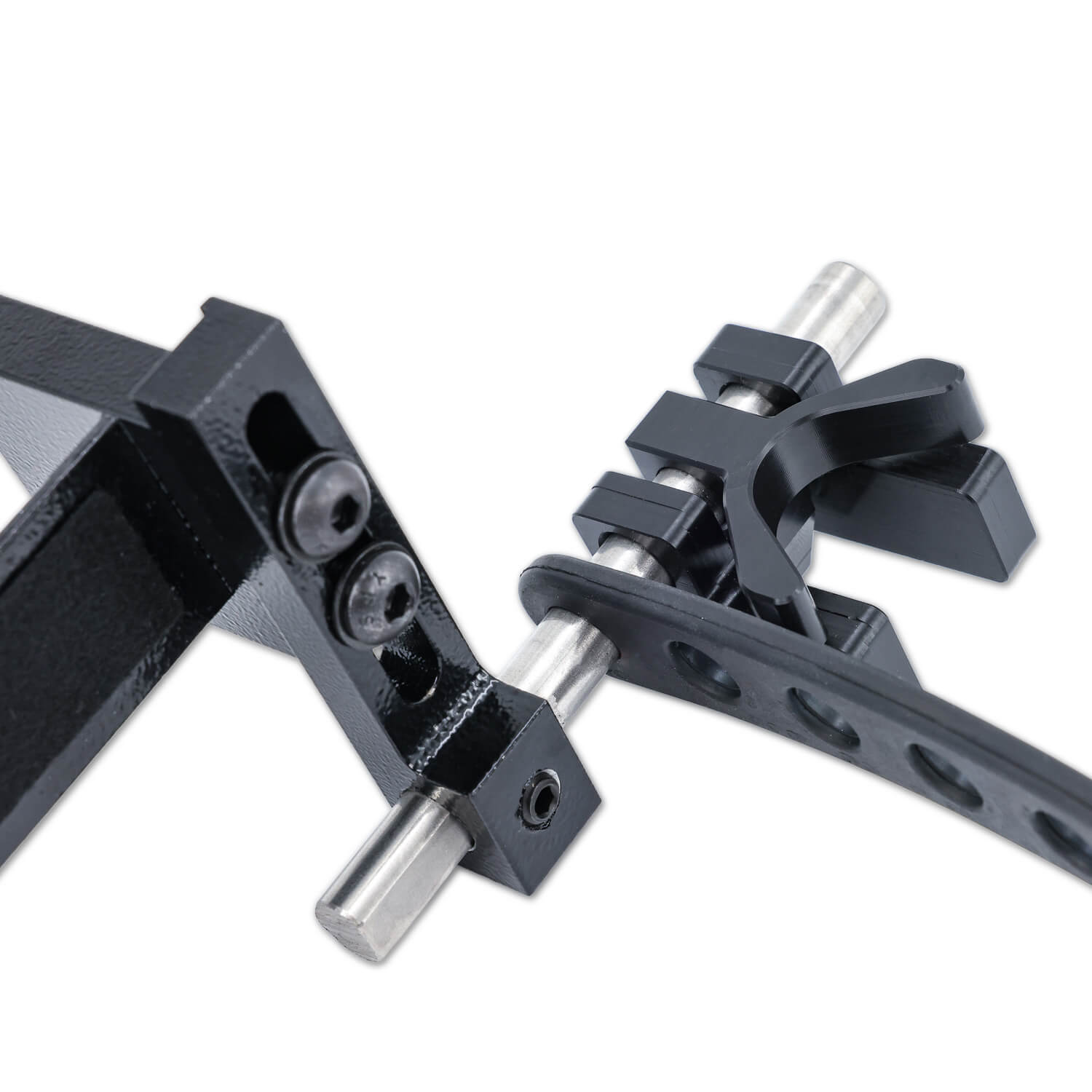

• Windage/Depth Adjustment (stainless steel rod): Slide in/out for perfect rope alignment (reference lines provided).

Right-Handed vs. Left-Handed Setup

• The bow holder can be mounted on either end of the bow press.

• To swap:

  1. Rotate the draw board bracket 90°.

  2. Reinstall the elevation bar, side plates, and gripper in reversed orientation.

• Choose end based on whether you primarily service right-handed or left-handed bows (for best visibility of cams and modules).

5. Benefits of the Precision Bow Holder

• Provides stable, repeatable readings for:

  • Cam timing

  • Cam lean

  • Draw length measurements

  • Holding weight with bow scales

• Mimics natural hand grip pressure for realistic, accurate testing.

• Reinforced steel construction ensures durability and precision over time.

6. Safety & Recommendations

• Always secure bow with the rubber strap before drawing.

• Keep hands clear of the bow press during installation.

• Retain spare felt filler for future adjustments.

• Decide one primary mounting end (left or right) to avoid frequent disassembly.

LCA Draw Board 2.0 – Swapping the Winch from Left to Right Side

The Last Chance Archery Draw Board 2.0 allows you to move the winch and precision bow holder from one side of your bow press to the other. This guide walks you through the process.

⚠️ Note: This is not something you’ll want to do repeatedly. However, if you prefer the winch on the opposite side, follow these steps.

Tools Needed

• 5/32″ Allen wrench (T-handle recommended)

• Optional: small impact drill or L-shaped Allen wrench for extra torque

Step 1 – Identify the Brackets

• Both the Precision Bow Holder bracket and the Winch bracket need to be rotated 90°.

• This ensures clearance inside the press arms and proper strap alignment.

Step 2 – Remove the Winch Bracket Screws

1. Locate the three black screws on the front of the winch bracket.

   • ⚠️ Do not remove the silver screw — it does not connect to the bracket.

2. Use your 5/32″ Allen wrench (or drill) to fully remove the three black screws.

   • Tip: Standing the unit upright may make removal easier.

Step 3 – Rotate the Bracket

1. With screws removed, carefully keep the winch/bracket assembly together.

   • Avoid turning it upside down — small parts may fall out.

2. Rotate the bracket 90° so the angle iron clears the internal block of the bow press arm.

3. Align the holes for reinstallation.

Step 4 – Reinstall the Screws

1. Insert the three black screws back into place.

2. Tighten gradually — do not fully cinch one screw at a time.

   • Alternate between screws to prevent cross-threading.

3. Ensure all bolts are snug and the bracket is secure.

Step 5 – Verify Orientation

• With the bracket rotated, the strap will feed in the correct direction without interference.

• Both left- and right-handed bows can be used regardless of side.

Step 6 – Choose Your Setup

• Right-hand bows → Most users prefer the winch on the left side of the bow press.

  • This allows timing marks, draw stops, and modules to face outward for easy viewing.

• Left-hand bows → You may prefer the opposite side, depending on visibility and workflow.

Final Notes

• The process takes only a few minutes.

• You can always reverse the setup later by loosening the screws again and rotating the bracket back.
