Foot Control Assembly (Upgrade toggle to foot)
$295.00
The Foot Control Assembly is designed to convert power bow presses, which use the toggle switch, into foot control units, enabling hands-free operation during bow maintenance. By incorporating this foot control assembly, archers can streamline their bow maintenance processes, enhancing speed and safety during adjustments with hands-free press operation.
Lead Time: 3 week(s)
- Motorized Foot Control Conversion: This assembly transforms power toggle switch-activated presses into foot control units, allowing quicker adjustments between different axle-to-axle bow lengths.
- Foot Control Operation: The foot control for motor operation enables the operator to keep both hands on the bow while making adjustments.
- 1 qty. Power Supply
- 1 qty. Wiring Assembly
- 1 qty. Foot Control Switch
- 1 qty. Foot Control Housing
- It is compatible with any LCA Power Press model that already has a toggle switch.
We don’t believe in one-size-fits-all solutions. Every tool we develop has a specific purpose, addressing real challenges faced by archers in tuning, setup, and performance. At LCA, we focus on every detail—from ease of use to perfect fit—so your workflow becomes faster, more precise, and more enjoyable. Precision begins with intentional design. The Foot Control Assembly for a bow press was created to help in these key areas.
Designed with End-Use in Mind
The Foot Control Assembly is built around the end-user experience. We don’t just design for looks—we design for function, durability, and ease-of-use in real-world applications.
Built with Purpose
The Foot Control Assembly is built with a specific purpose in mind: to make things easier for the archer.
Workshop-Tested Durability
The Foot Control Assembly has been rigorously tested to withstand the demanding conditions of the workshop environment. Repeated use, less than favorable conditions. It’s not a problem.
Product Support
Questions? We've got answers. Our product support team is ready to help with guides, tips, and real solutions. If you need assistance with the Foot Control Assembly, please don't hesitate to contact our team.
Foot Control Assembly (Upgrade Toggle to Foot)
Setup & Installation Instructions

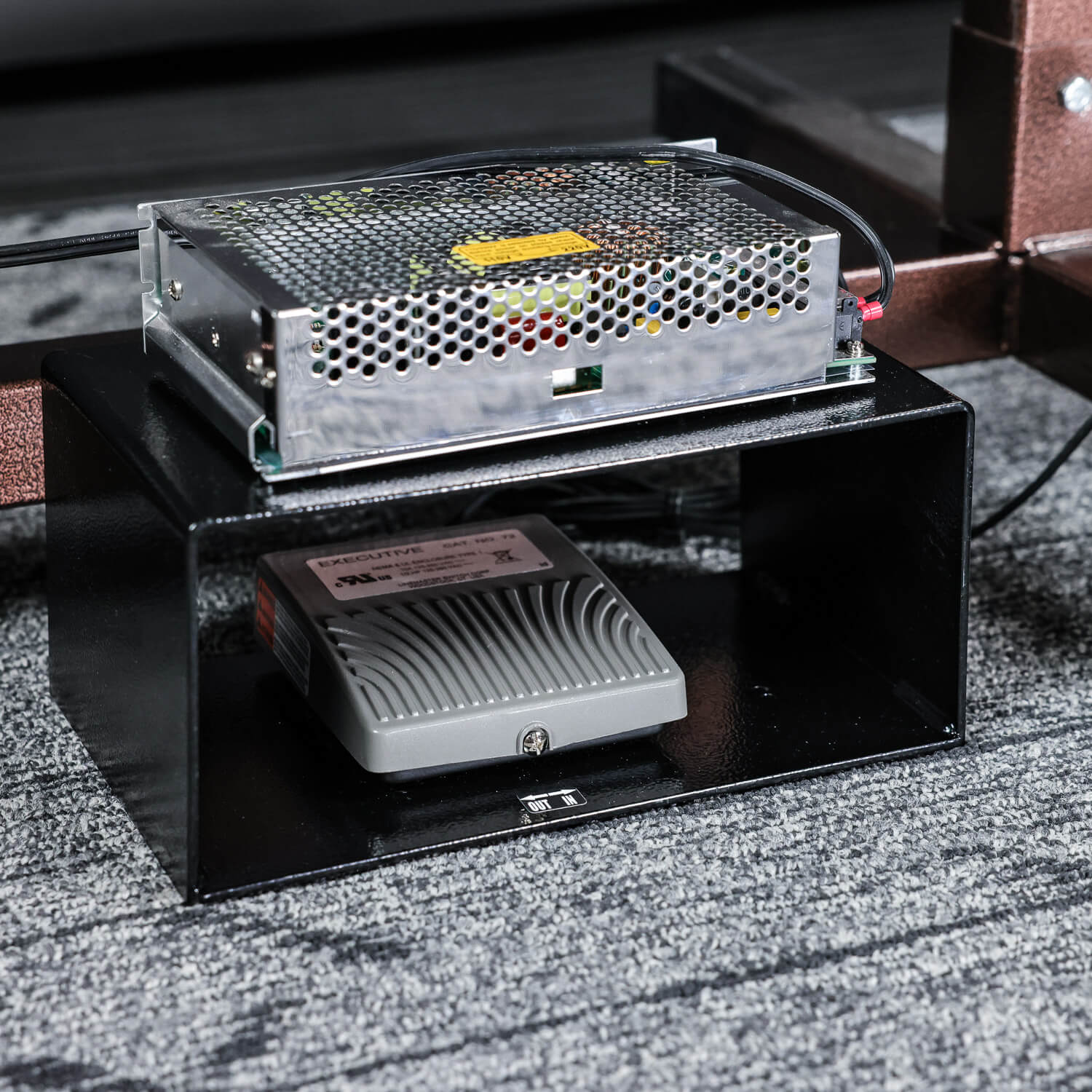

Included Parts
Power supply
Wiring assembly
Foot control switch
Foot control housing
Installation
Confirm your bow press is an LCA Power Press currently equipped with a toggle switch.
Ensure the bow press is not under load before beginning installation.
Disconnect the existing toggle switch wiring from the motor.
Remove the toggle switch connection from the motor housing as needed to allow for the foot control wiring.
Position the Foot Control Housing in a location that allows comfortable foot access during operation.
Connect the wiring assembly to the motor using the designated connector.
Route the wiring neatly to avoid pinch points or interference with press movement.
Connect the wiring assembly to the Foot Control Housing.
Connect the foot control switch to the Foot Control Housing.
Plug the power supply into the Foot Control Assembly.
Plug the power supply into a grounded outlet.
Verify all connections are fully seated and secure.
Test the foot control by lightly engaging the pedal to confirm proper motor operation.
Use the foot control to operate the bow press, keeping both hands free for bow handling and adjustments.
Discontinue use immediately if any abnormal movement or sound is detected and recheck connections.
Additional information
| Weight | 7 lbs |
|---|---|
| Dimensions | 4.5 × 10 × 6 in |
| Product Lead Time (Wks) | 3 |
- Power Supply:
- 115VAC or 230VAC (Variable Option)
- Plug:
- Standard US 115V Plug
- An adapter would be needed for a 230V plug-in application.
Additional information
| Weight | 7 lbs |
|---|---|
| Dimensions | 4.5 × 10 × 6 in |
| Product Lead Time (Wks) | 3 |
