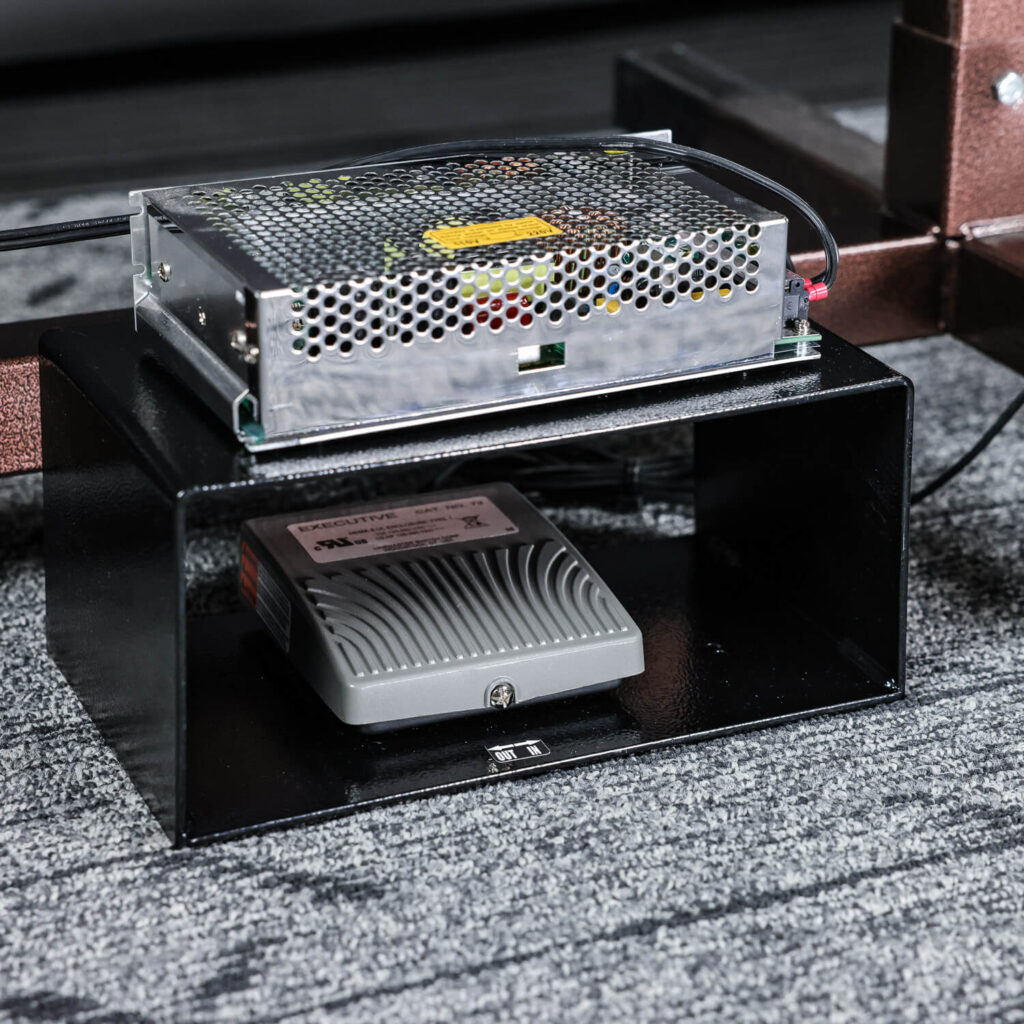

Power Adapter Kit – Foot Switch
$415.00
The Power Adapter Kit – Foot Switch is an upgrade designed to convert manual LCA bow presses into motorized units, enhancing efficiency and ease of use and enabling hands-free operation during bow maintenance. By incorporating this foot control assembly, archers can streamline their bow maintenance processes, improving speed and safety during adjustments with hands-free press operation. Not to mention, never having to turn a handle or handwheel again
Lead Time: 1 week(s)
- Motorized Conversion: Transforms manual presses into powered units, facilitating quicker adjustments between different axle-to-axle bow lengths.
- Foot Pedal Operation: The foot switch offers hands-free control, enabling the operator to maintain both hands on the bow during adjustments.
- 1 qty. Aluminum Adapter Stud
- 1 qty. Nylon Spacer
- 1 qty. Black Tube Adapter
- 1 qty. Nut Thread Cleaner
- 1 qty. Motor with Mounting Bolt
- 1 qty. Power Supply
- 1 qty. Wiring Assembly
- 1 qty. Foot Control Switch
- 1 qty. Foot Control Housing
- 1 qty. 1/4-20 Set Screw
- 2 qty. 1/4-20 Button Head Cap Screws
- This product can be installed onto and used with any LCA manual press.
We don’t believe in one-size-fits-all solutions. Every tool we develop has a specific purpose, addressing real challenges faced by archers in tuning, setup, and performance. At LCA, we focus on every detail—from ease of use to perfect fit—so your workflow becomes faster, more precise, and more enjoyable. Precision begins with intentional design. The Power Adapter Kit for a bow press was created to help in these key areas. With this product, you can make tuning simpler, faster, and easier overall.
Built with Purpose
The Power Adapter Kit is built with a specific purpose in mind: to make things easier for the archer.
Designed with End-Use in Mind
The Power Adapter Kit is built around the end-user experience. We don’t just design for looks—we design for function, durability, and ease-of-use in real-world applications.
Engineered for Reliability
Whether you're tuning in the shop or making last-minute adjustments at the range, the Power Adapter Kit is engineered for reliability that never quits.
Product Support
Questions? We've got answers. Our product support team is ready to help with guides, tips, and real solutions. If you need assistance with the Power Adapter Kit, please don't hesitate to contact our team.
Power Adapter Kit – Foot Pedal
Setup & Installation Instructions

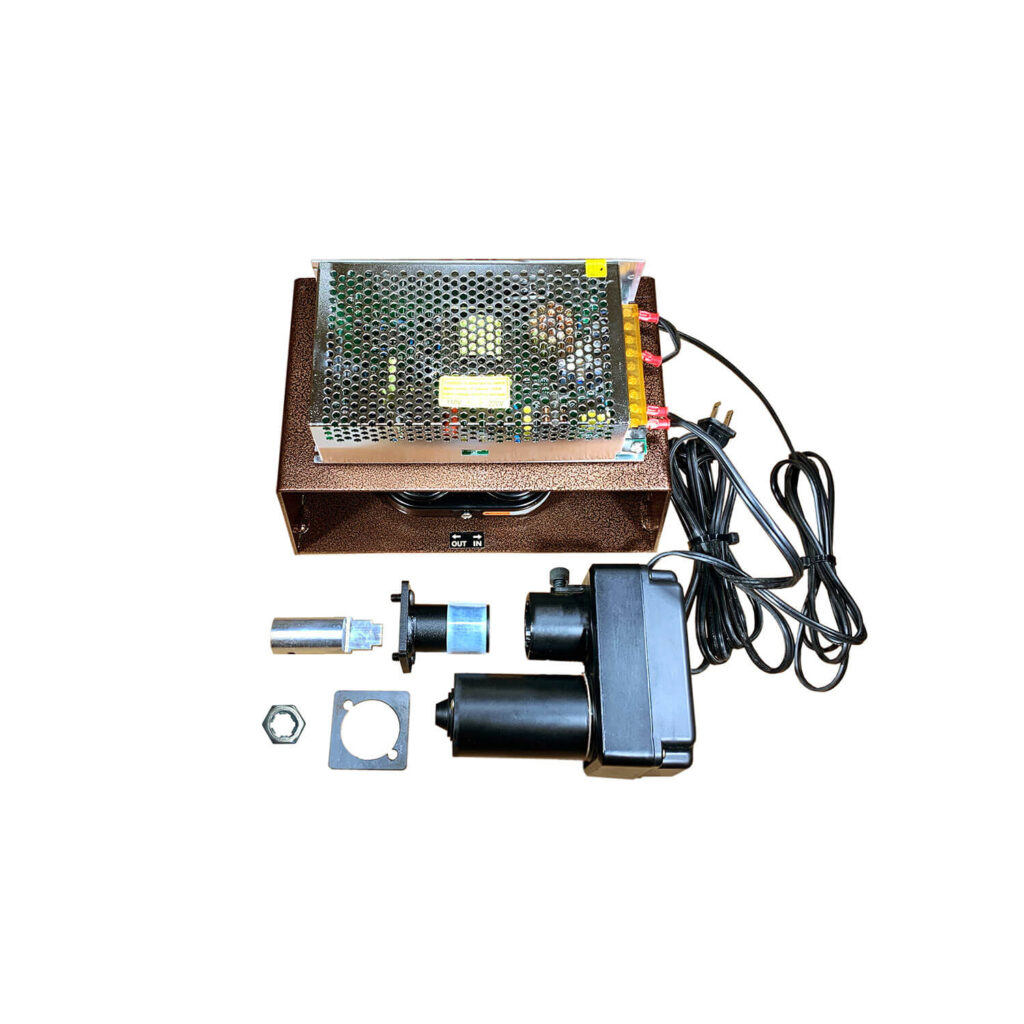

Included Parts
Aluminum adapter stud
Nylon spacer
Black tube adapter
1/4-20 set screw
Two 1/4-20 button head screws
Nut thread cleaner
Motor with large black Allen head screw
Power supply (silver box)
Foot control switch
Installation
Read all instructions fully before beginning installation.
Ensure the bow press arm is positioned at least 1/2″ away from being fully closed before starting.
Use a 1/8″ Allen wrench to loosen the small set screw inside the existing handwheel.
If removing a handle from an EZ Green Press, remove the face nut from the front of the handle using a second 15/16″ wrench.
Use a 15/16″ wrench to hold the press nut in place.
Unthread and remove the handwheel or handle by turning it counterclockwise off the threaded rod.
Thread the nut thread cleaner fully onto the exposed threaded rod.
Remove the thread cleaner after cleaning to ensure all threads are clear.
Install the aluminum adapter stud by threading it clockwise onto the threaded rod until it seats fully against the press nut.
Tighten the set screw inside the aluminum adapter stud using a 1/8″ Allen wrench to lock it in place.
Use a 5/32″ Allen wrench to remove the two 1/4-20 screws from the back of the press.
Install the nylon spacer onto the backside of the press, aligning the holes correctly.
Slide the black tube adapter over the aluminum adapter stud.
Ensure the clear plastic spacer strip is wrapped around the black tube before installing the motor.
Orient the black tube so the hole in the tube faces the backside of the press.
Install the two 1/4-20 screws through the black adapter and nylon spacer into the press.
Tighten the screws evenly but do not overtighten to avoid press bearing damage.
Align the aluminum adapter stud with the gear inside the motor by visual alignment.
Slide the motor onto the black adapter until the alignment arrows touch.
Confirm the motor is fully seated before securing it.
Hand-tighten the large silver thumb screw into the hole in the black adapter.
Tighten only enough to prevent motor movement and do not overtighten.
Connect the foot control switch to the power supply and motor.
Plug the power supply into a grounded outlet.
Use the foot pedal to operate the bow press once installation is complete.
Additional information
| Weight | 12 lbs |
|---|---|
| Dimensions | 9.5 × 10 × 6 in |
| Product Lead Time (Wks) | 1 |
- Each piece included in this kit is specifically designed for use on manual press bodies, but with power conversion.
Additional information
| Weight | 12 lbs |
|---|---|
| Dimensions | 9.5 × 10 × 6 in |
| Product Lead Time (Wks) | 1 |
Reviews
There are no reviews yet.
You may also like…
Related Products
Universal Tuning Gauge
Arrow Wraps - Solid Series
Arrow Wraps - Tactical Series
Arrow Wraps - Ignite Series

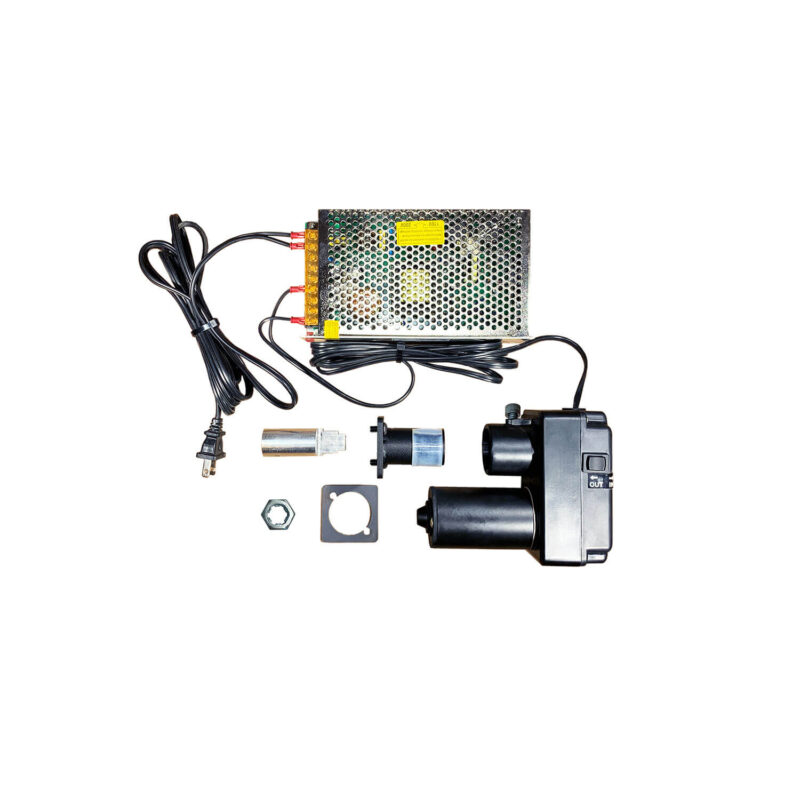

Power Adapter Kit - Toggle Switch
