Before Pressing

• Always wear PPE while using LCA products
• Always confirm limb tips are equal before pressing.
• Use LCA Quick Clips archery string and cable clips to secure strings or cables during tuning, preventing them from untwisting.
• After restringing, always inspect the string and cable loops to ensure they are correctly installed and that each is within the appropriate track.

Inspect prior to pressing:

Verify all press hardware is tight.
Confirm fingers/adapters are fully seated.
Check that the bow is properly positioned.
Ensure nothing contacts the cams or strings improperly.
Make sure the bow can travel freely through the entire pressing cycle.

Never adjust the press quickly. As tension is removed, continually watch:

limb alignment
finger contact
string and cable movement
any unusual twisting or shifting
Stop immediately if anything looks abnormal.
Only remove enough tension to perform the required service. There is no advantage to over-pressing a bow, and excessive compression places unnecessary stress on the limbs and components.

Some modern bows require more width adjustment range than older presses provide.

LCA’s 3″ Block Kit or 3″ Pin Kit (presses built after August 3, 2023, already include these kits as standard) provides the additional adjustment needed.

• Never leave a bow under pressure longer than necessary.
• Keep hands clear of pinch points while operating the press.
• Never modify press components or use homemade adapters.
• Use only genuine LCA accessories designed for your press.
• If you’re unsure whether a bow is compatible, contact LCA before pressing.
• Always follow the bow manufacturer’s recommendations in addition to the press instructions.

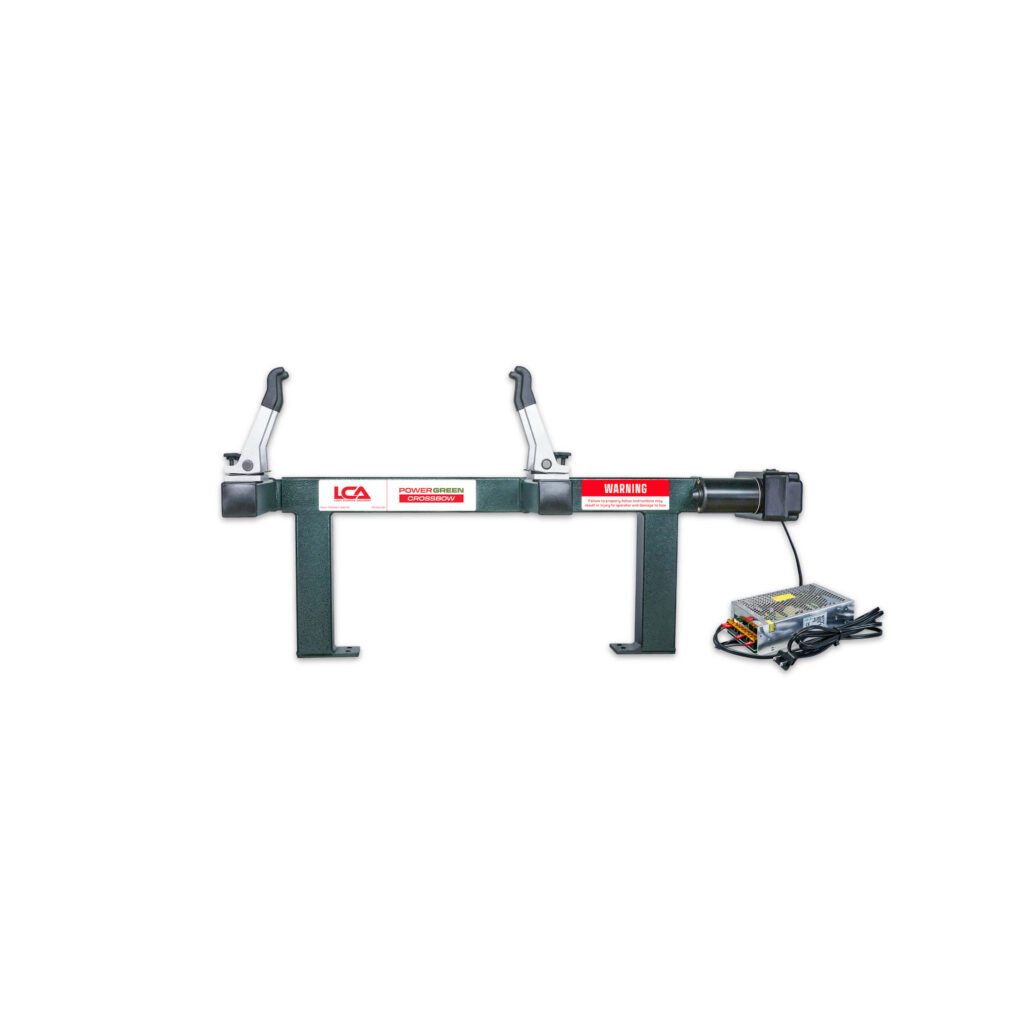

Unboxing Your Power Green Crossbow Press

Mounting & Setup

Choose a sturdy, level surface suitable for pressing
Attach the mounting brackets to the press base with the provided bolts and washers
For permanent bench mounting, install with lag bolts
For temporary setups, use heavy-duty C-clamps and check tightness frequently
Confirm that the press sits stable and level before inserting a bow or crossbow

Motor Operation & Thumb Toggle Control

Plug the power cord into a grounded 110V outlet (or appropriate regional equivalent).
Push the toggle forward to open the press arms.
Pull the toggle backward to close the arms and apply limb compression.
Release the toggle to stop the motor immediately.
The motor always stops when the toggle returns to neutral.
Always watch the bow during operation — never operate blindly.

Installing & Adjusting the Press Fingers

Press the spring-loaded tab downward and slide each finger into its slot until it locks
Adjust finger spacing to match limb pocket width
Use the rear thumb screws to fine-tune limb-tip contact
Ensure each finger sits flush and evenly against the limb
Confirm balanced pressure with no twisting or side-loading
Always ensure clearance between the bow, limbs, and the press
Mark your most common setups on the rails to simplify future use

Placing the Crossbow in the Press

Move the bow press motor in/out using the finger toggle switch located on the topside of the motor cover to open the press arms until adequate clearance is available
Center the bow so both limb tips rest evenly on the fingers
Ensure the riser is straight and level before tightening
Activate and move the bow press arm using the power motor toggle switch slowly until the press fingers make light, even contact with the limbs
Verify that strings, cables, and cams are clear of interference
For crossbows narrower than 10 inches, attach the Mini Xbow Adapter for proper limb support

Safety Tip:

• Never force a bow into position within the press
• Standard-limb crossbows — the stock faces upward.
• Reverse-limb crossbows — the stock faces downward.

Pressing the Bow

With the bow centered and supported, activate and move the bow press arm using the power motor toggle switch to compress the limbs
Stop when the string and cables are relaxed enough for maintenance
Perform tuning adjustments, string and cable replacement, peep installation, and general service
Activate and move the bow press arm using the power motor toggle switch to release pressure until the limbs return fully to rest

After Use & Maintenance

Wipe the press clean after each use
Lightly lubricate the lead-screw threads periodically with white lithium grease. Reach out to LCA for more info
Inspect all hardware for loose screw or bolts and ensure tightness before each use

Safety Guidelines

Always wear PPE while using LCA products
Always secure the press to a stable, level surface before use
Keep hands, tools, and cables clear while pressing
Do not exceed the rated limb weight or press width
Release pressure slowly and evenly every time
