Replacement – RAS Motor (230V)
$60.00

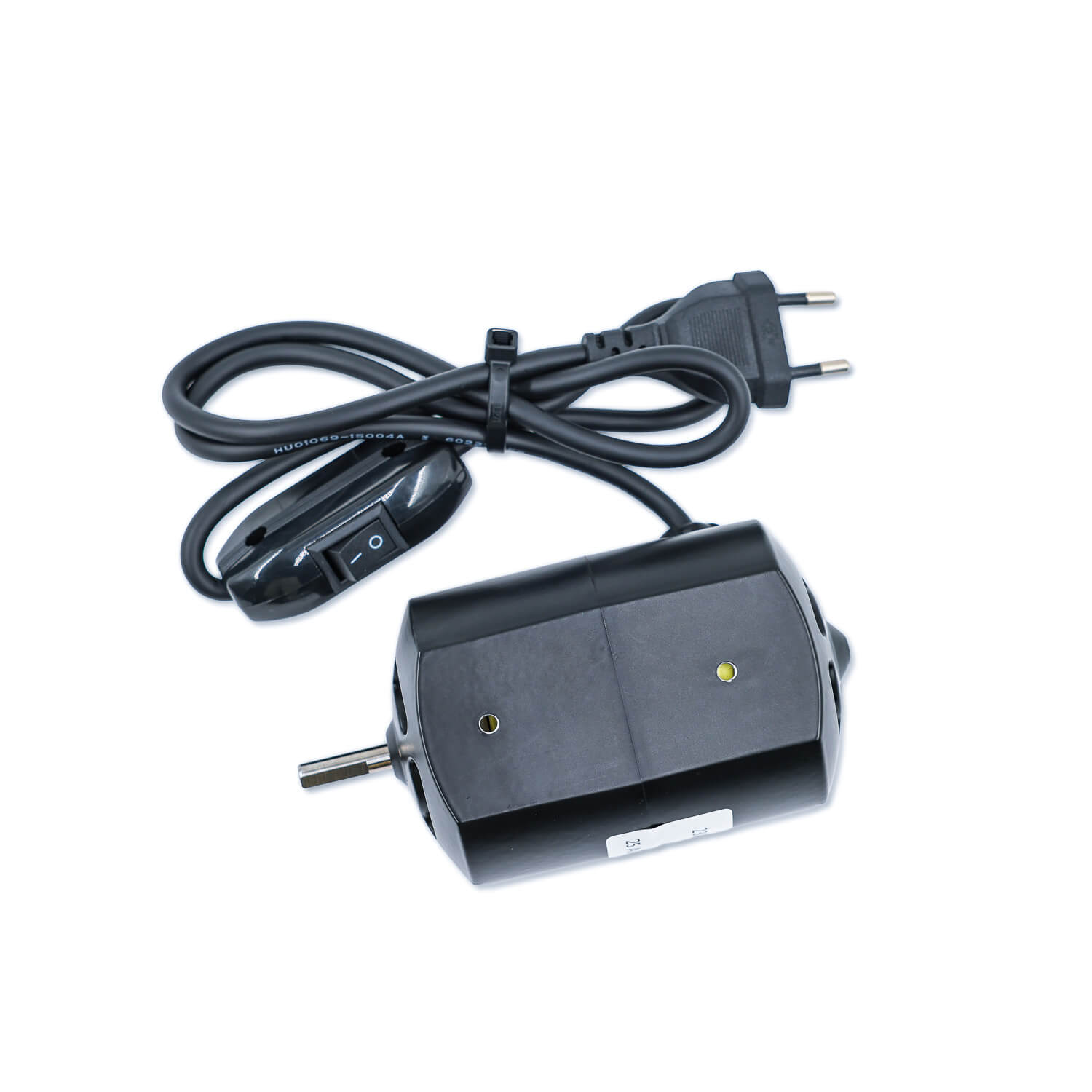

This product is a replacement motor for the Revolution Arrow Saw. Each Arrow Saw comes standard with a custom motor, either 115V or 230V. This specific replacement motor is 230V and is an exact match. If your motor has an issue, this replacement is easy to swap out.
Lead Time: 1 week(s)
- Smooth
- Quiet
- Fast
- Precise
- 1 qty. 230V Revolution Arrow Saw Replacement Motor
- Fits the (230V) Revolution Arrow Saw.
- Important: Each 230V motor includes a two-prong standard European plug. This motor is not compatible with standard 115V outlets used in the US and Canada. As a separate item, you can purchase a replacement 115V motor or use an approved and safe converter.
A precisely built arrow is a primary key to success in the field. At LCA, we aim to engineer and produce high-quality tools, and our arrow building line of products exemplifies this commitment.
Strong & Durable Materials
Built like a tank, so you can fully trust that this product will stand the test of time.
Designed with End-Use in Mind
Built around the end-user experience. We don’t just design for looks—we design for function, durability, and ease-of-use in real-world applications.
Workshop-Tested Durability
This product has been rigorously tested to withstand the demanding conditions of the workshop environment. Repeated use, less than favorable conditions. It’s not a problem.
Product Support
Questions? We’ve got answers. Our product support team is ready to help with guides, tips, and real solutions.
Replacement – RAS Motor (230V)
Installation & Setup Instructions
Ensure the Revolution Arrow Saw is unplugged from the power outlet before beginning the installation.
Place the saw on a stable work surface with adequate lighting and access to the motor housing.
Remove the motor cover or mounting hardware securing the existing motor.
Carefully disconnect the motor wiring connectors from the original motor.
Remove the mounting screws or bolts that secure the motor to the saw frame.
Slide the old motor out of the mounting position and set it aside.
Position the replacement 230V motor into the motor mounting bracket.
Align the motor shaft with the saw blade assembly to ensure proper fit.
Secure the motor using the original mounting hardware.
Reconnect the motor wiring connectors exactly as they were connected previously.
Ensure all wires are secure and clear of moving components.
Reinstall the motor cover or housing if applicable.
After assembly, ensure there is 1/8″ clearance between the chuck and the motor plate.
Plug the saw into a 230V outlet only.
Briefly power on the saw to verify smooth motor operation and correct blade rotation.
Listen for any unusual noises and ensure the blade spins smoothly and quietly.
Turn the saw off and verify all mounting hardware remains tight and secure.
Your Revolution Arrow Saw is now ready for use.
Additional information
| Weight | 3 lbs |
|---|---|
| Dimensions | 10 × 2.5 × 5 in |
| Product Lead Time (Wks) | 1 |
- 230V
- 60HZ
- 10,000 RPM
Additional information
| Weight | 3 lbs |
|---|---|
| Dimensions | 10 × 2.5 × 5 in |
| Product Lead Time (Wks) | 1 |
