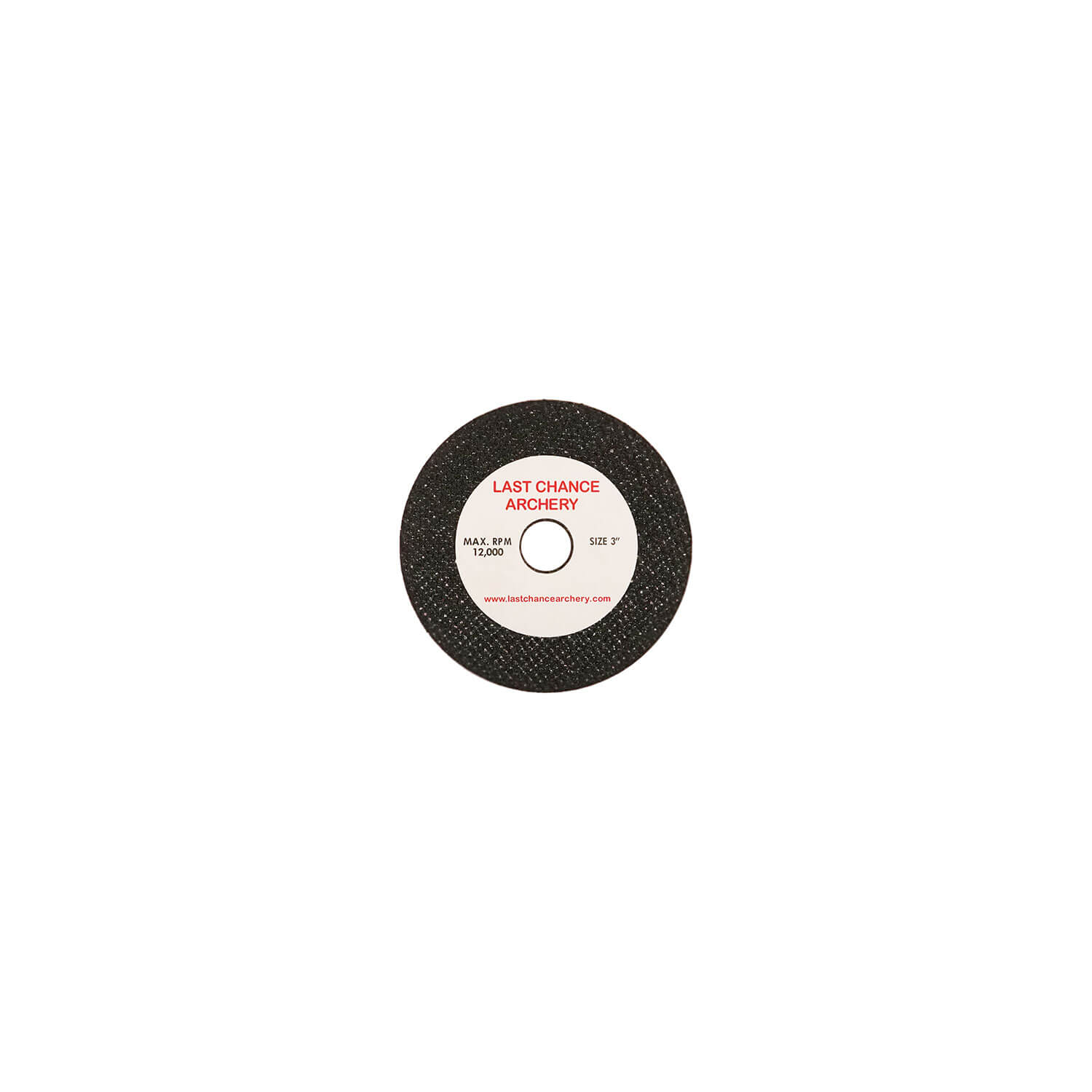

Replacement – 3″ Cut-Off Wheel
$4.00
The LCA 3″ Cut-Off Wheel is a replacement cutting blade for the LCA Revolution Arrow Saw. This blade can also be used on any arrow saw on the market that uses a 0.5″ center bore for mounting and a 3″ diameter blade as standard.
Lead Time: 1 week(s)
- Reinforced silicon carbide for precision cuts and increased longevity
- Makes clean, precise cuts
- Durable, precise, long-lasting
- 1 qty.
- 3″ Cut-Off Wheel
- Fits any saw based on a 3″ diameter fitment
- ½” chuck/bore diameter for mounting
Each 3″ Cut-Off Wheel is made from a precise silicon carbide for the most accurate cuts. Success in the field begins with a precise arrow build.
Built for Performance
Each blade is designed for high-speed and high-precision shaft cuts.
Built to Last
Users can cut thousands of arrows using one single blade.
Workshop-Tested Durability
Tested to withstand workshop elements.
Crafted for Consistency
Each blade is engineered and designed for the smoothest cuts, enabling more accurate arrow builds.
Replacement – 3″ Cut-Off Wheel
Setup & Use Instructions
Disconnect power from the arrow saw before removing or installing the cut-off wheel.
Allow the saw and existing blade to come to a complete stop before handling.
Loosen the arbor or retaining hardware according to the saw manufacturer’s instructions.
Remove the existing cut-off wheel carefully from the saw.
Inspect the mounting arbor to ensure it is clean and free of debris.
Install the 3″ cut-off wheel onto the arbor, ensuring the ½″ center bore is fully seated.
Align the blade so it sits flat and true against the mounting surface.
Reinstall and tighten the retaining hardware securely without over-tightening.
Rotate the blade by hand to confirm it spins freely and does not wobble.
Reconnect power to the saw once installation is complete.
Use light, controlled pressure when cutting arrow shafts to achieve clean, precise cuts.
Allow the blade to do the work to maximize blade life and cut quality.
Inspect the blade periodically for wear or damage and replace as needed.
Store unused cut-off wheels in a clean, dry location.
Additional information
| Weight | 0.0625 lbs |
|---|---|
| Dimensions | 3 × 3 × 0.02 in |
| Product Lead Time (Wks) | 1 |
- 3″ Diameter
- ½” Center Bore
- 12,000 RPM Rating
- Silicon carbide material
Additional information
| Weight | 0.0625 lbs |
|---|---|
| Dimensions | 3 × 3 × 0.02 in |
| Product Lead Time (Wks) | 1 |
