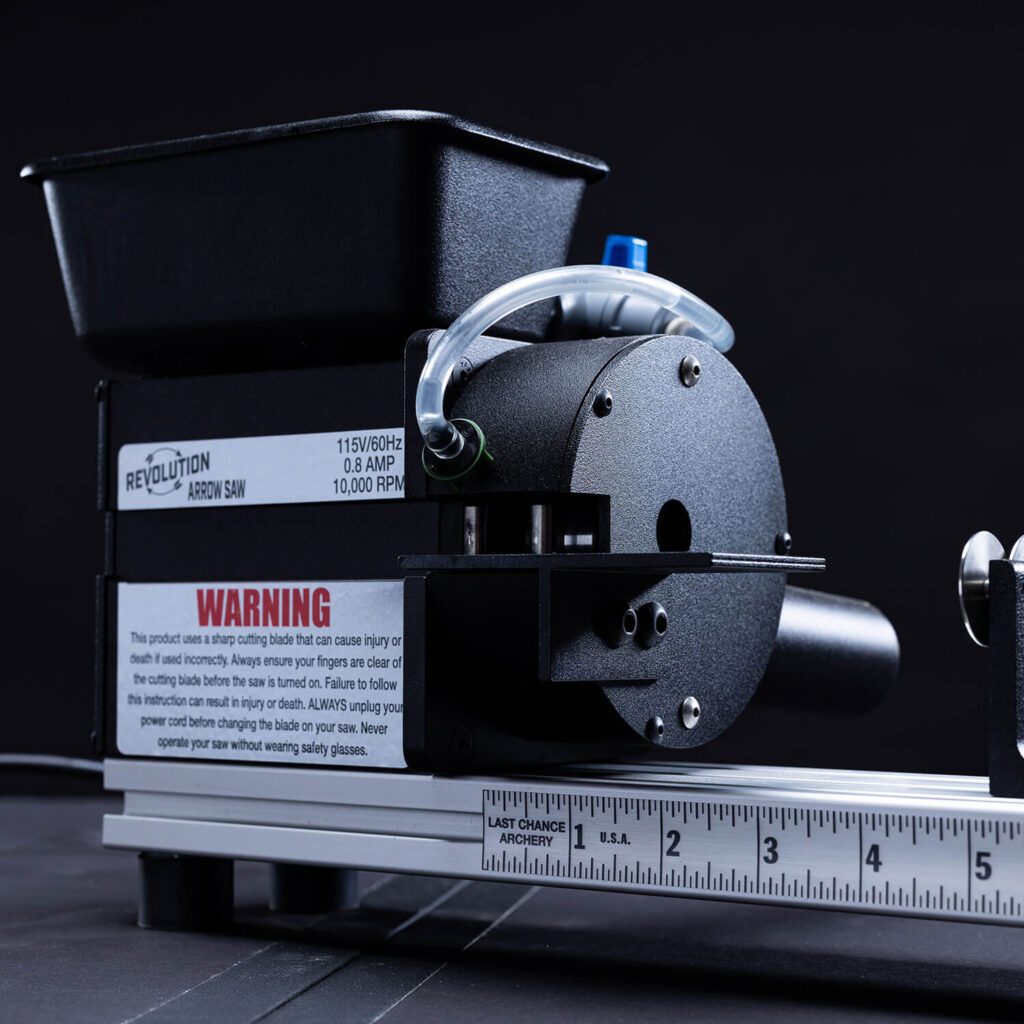

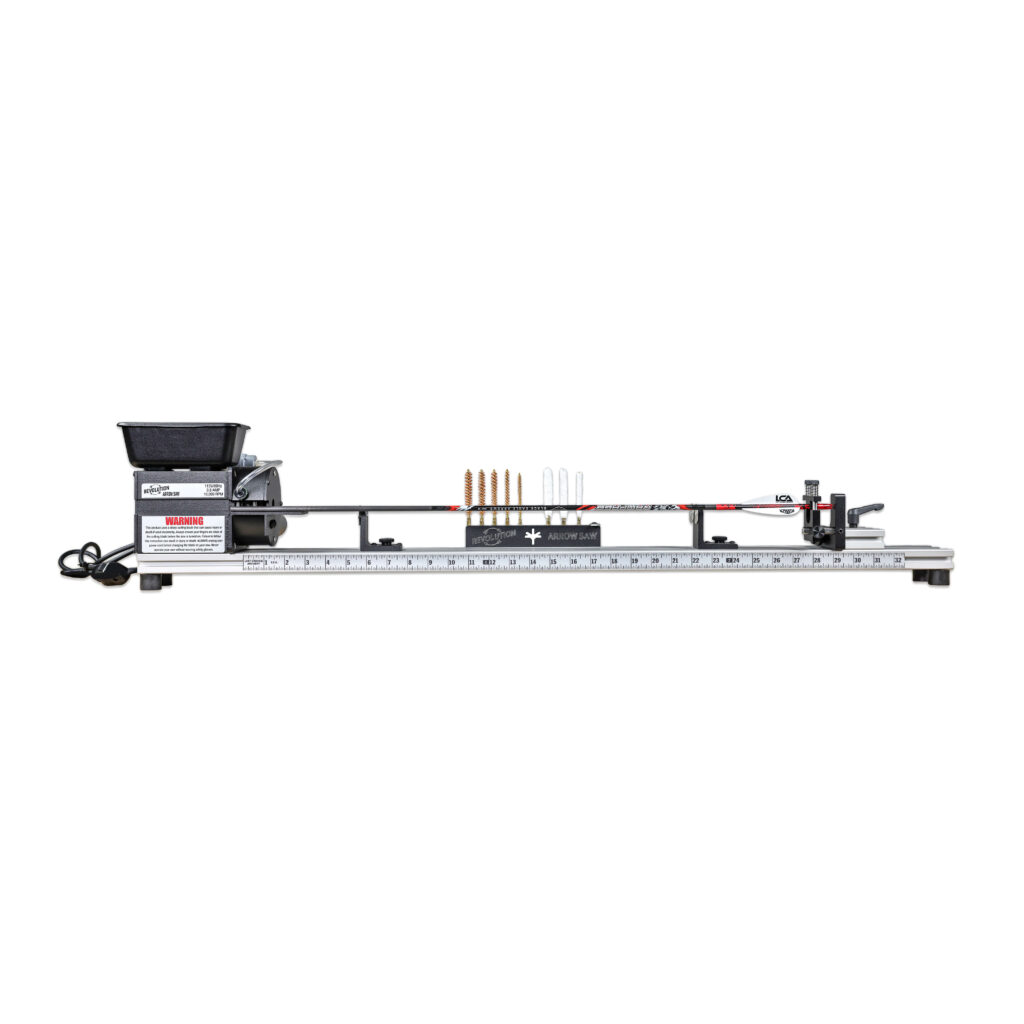

Revolution Arrow Saw – 115V

What’s in the Box

When unboxing, you will find:

• Pre-assembled Revolution Arrow Saw (main unit)

• Water container with water dripper

• 5 brushes

• 3 swabs

• Deburring tool with mounting screw

• Replacement screw & accessories

Setup & Assembly

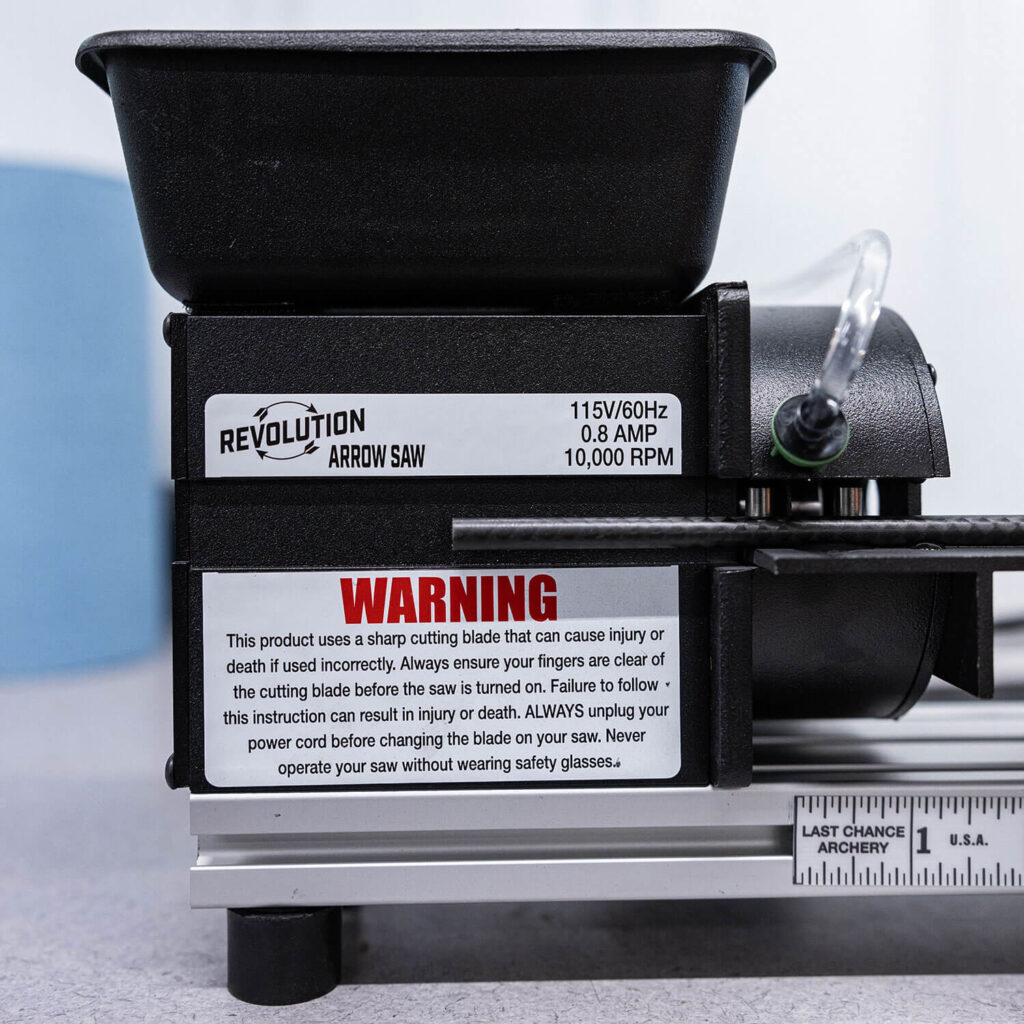

1. Install the Water System

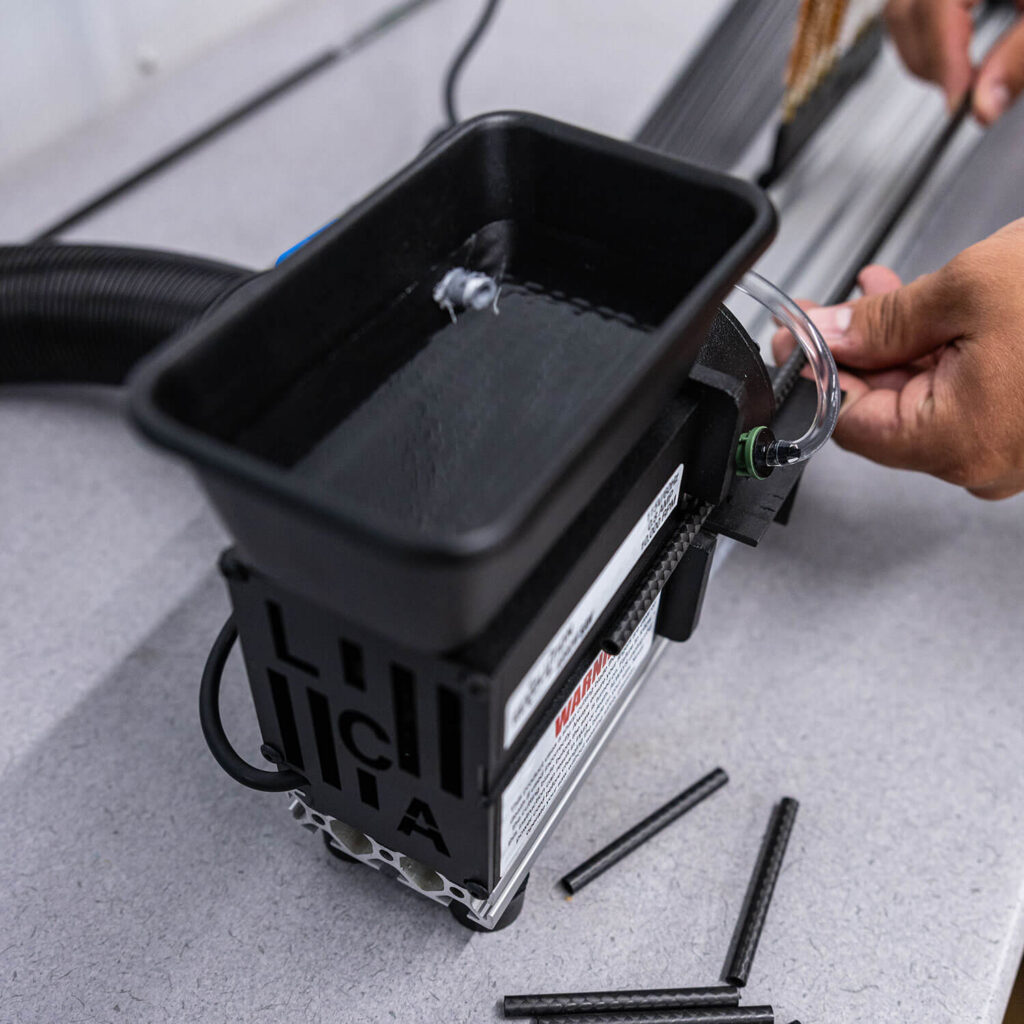

1. Attach the water container (with Velcro) to the top of the saw.

2. Ensure the rubber tube is fully inserted into the valve to prevent leaks.

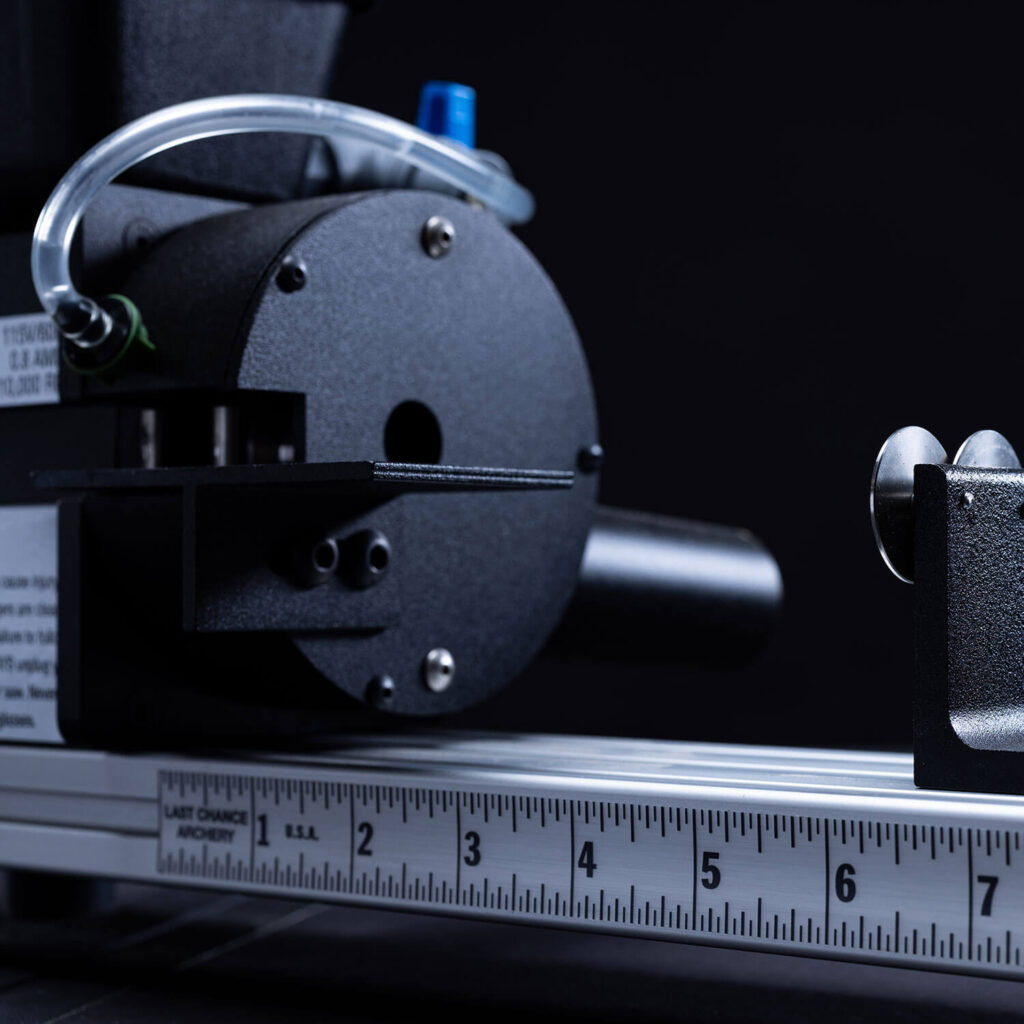

3. Insert the dripper into the single hole on the front of the blade cover.

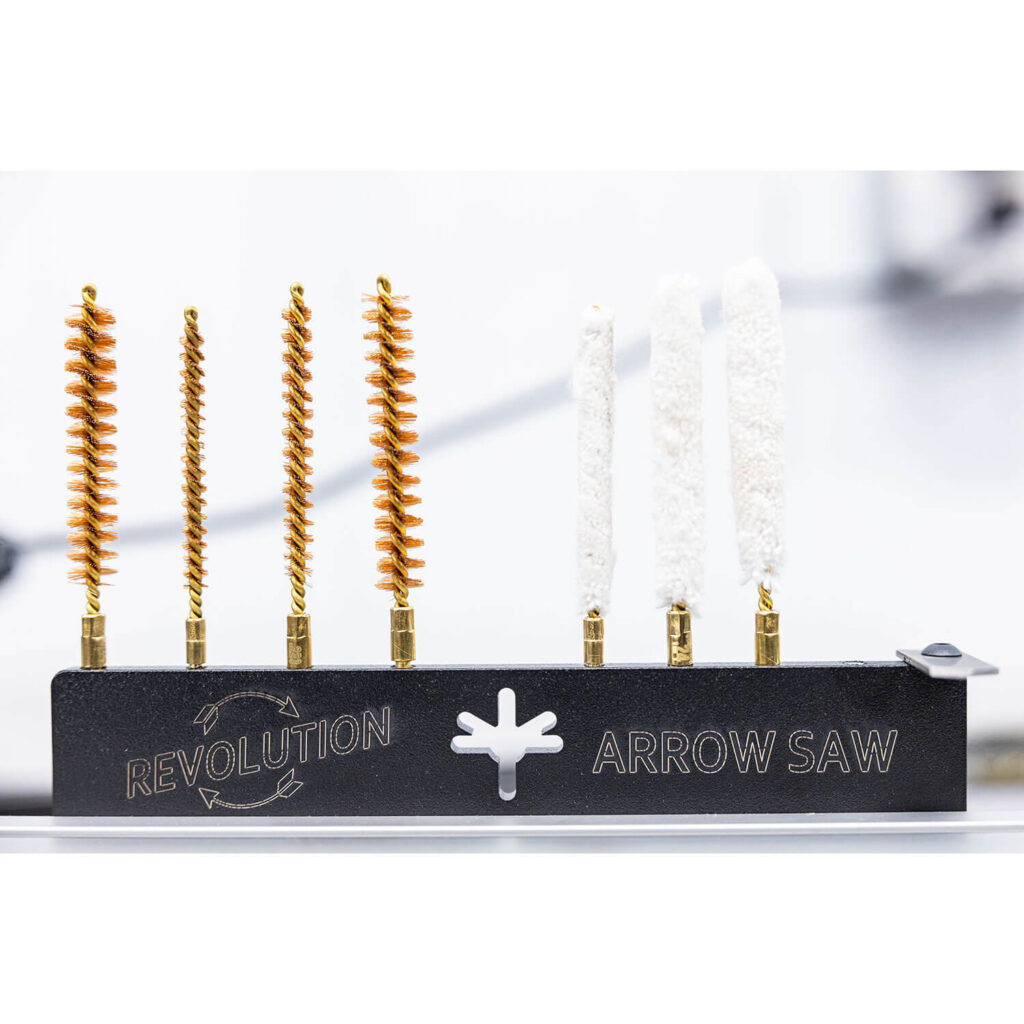

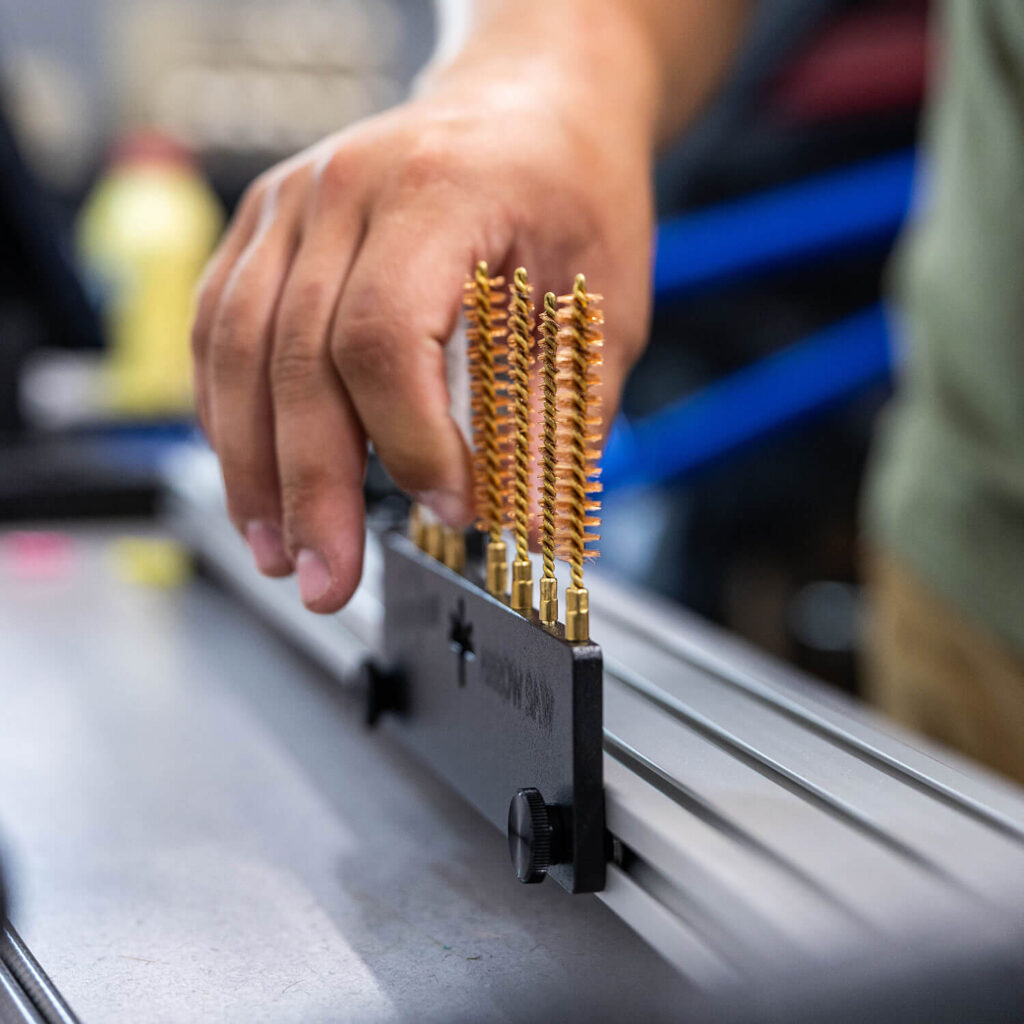

2. Install Brushes & Swabs

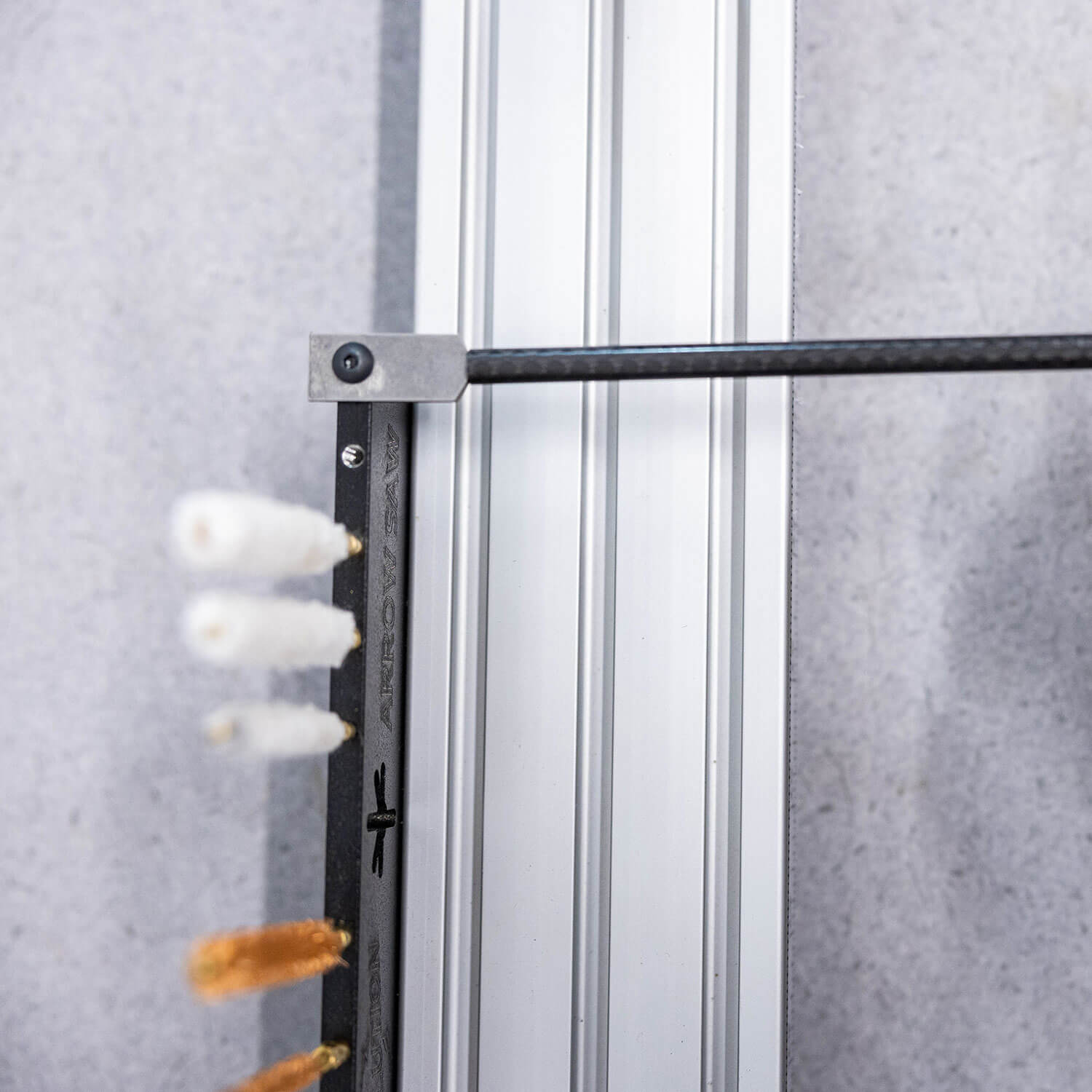

1. Screw brushes and swabs into place (largest to smallest).

2. Tighten securely so shafts don’t loosen them during use.

3. Install the Deburring Tool

1. Position tool on the right side of the unit.

2. Insert screw using a 3/32″ Allen wrench.

3. Tighten until secure, facing the user.

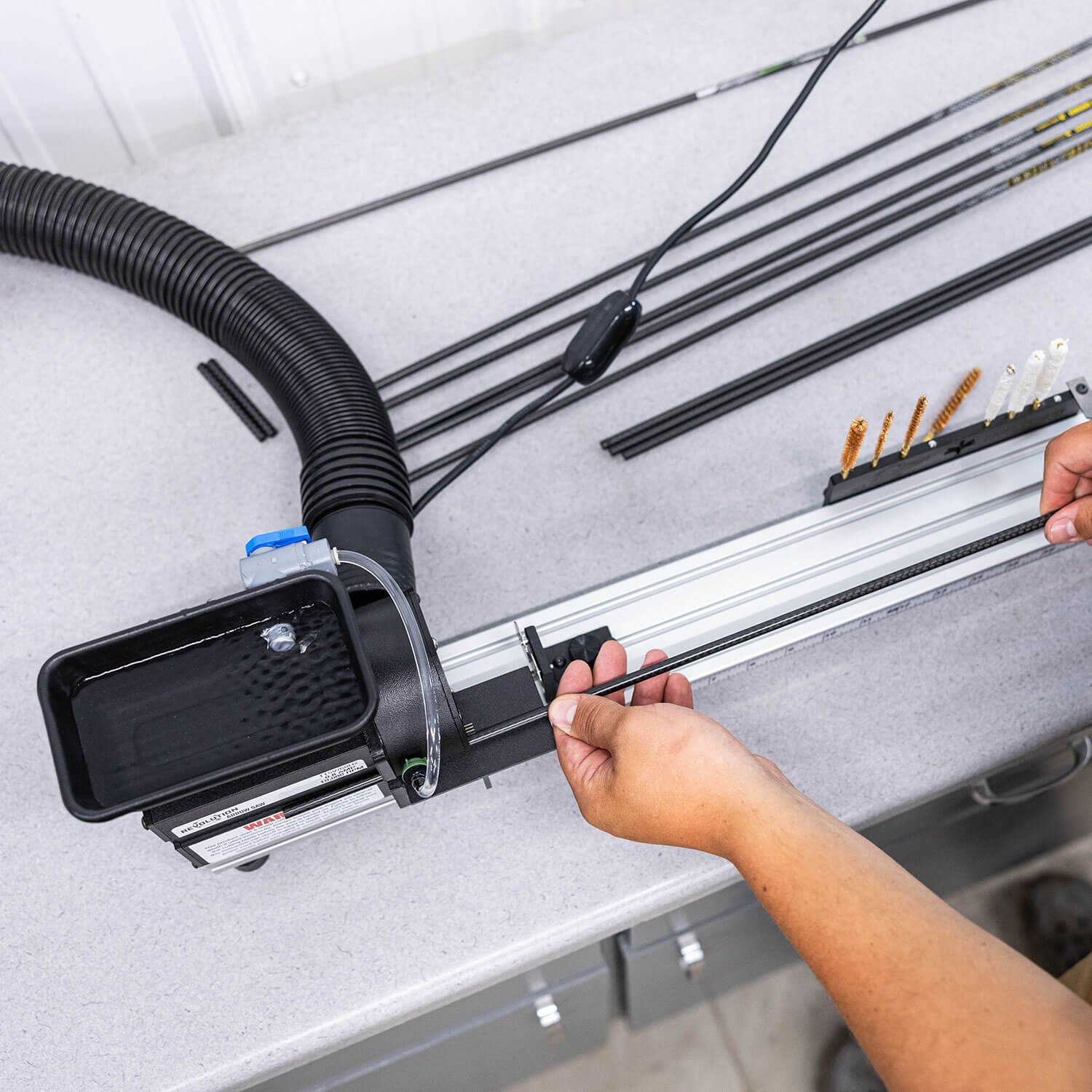

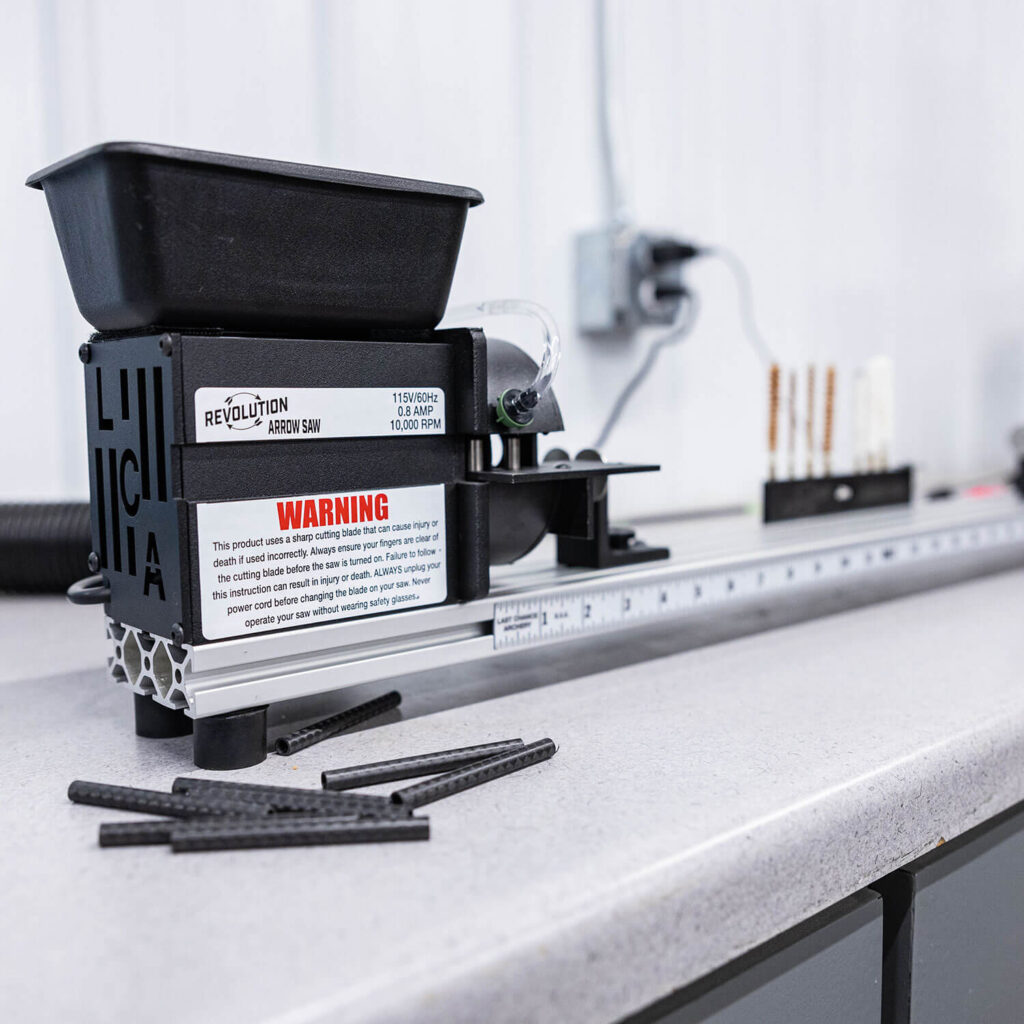

4. Connect a Vacuum

• Attach a shop vacuum (1.25″ hose recommended).

• The vacuum removes water and carbon dust during cutting.

5. Add Water

• Fill container and confirm dripper flows smoothly.

Key Features

• High-quality blade (replacement available)

• Precision track system with tight tolerances

• Spinning disc straightness checker

• Integrated sanding disc for squaring shaft ends

• Brushes, swabs, deburring tool for cleaning & finishing

• Broadhead tightening tool built into the frame

• 1-inch measuring tape for quick length setup

• Water dripper system to reduce carbon dust

• Solid rubber feet or optional bolt-down mounting

Safety Precautions

• Always wear safety glasses.

• Run vacuum first, then blade, then water.

• Shut down in reverse order: water → blade → vacuum.

• Clean vacuum monthly to prevent odor and dust buildup.

• Operate in a safe location with no foot traffic around the saw.

Operating Instructions

1. Preparing to Cut

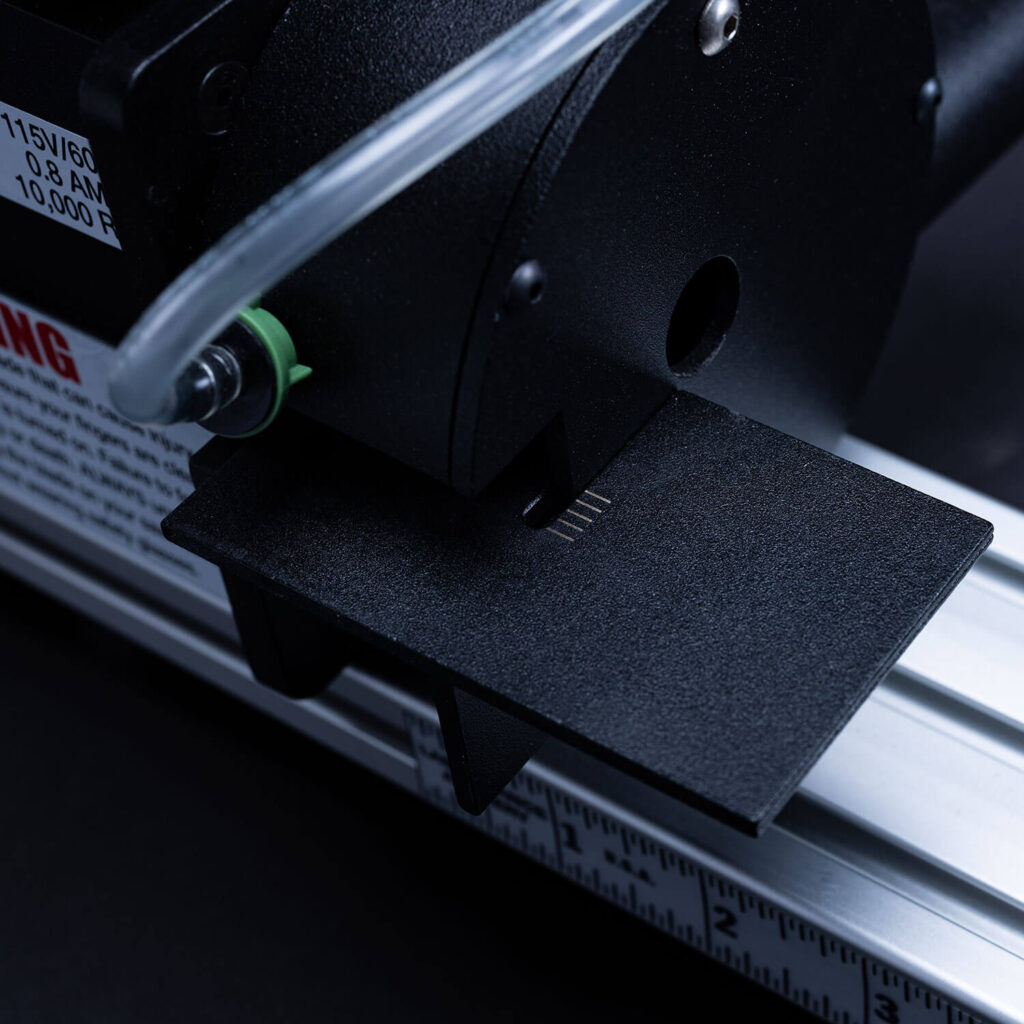

1. Align stop and shelf using tick marks so both ends match.

2. Attach shaft to spinners and ensure support near the motor.

3. Square a “sacrificial” shaft first to smooth the sanding disc edges.

2. Cutting an Arrow Shaft

1. Measure arrow using built-in tape.

2. Adjust stop to desired length.

3. Sequence: Vacuum ON → Blade ON → Water ON.

4. Place shaft against stop, rotate to cut.

5. Turn off in sequence: Water OFF → Blade OFF → Vacuum OFF.

3. Squaring & Finishing

1. Place cut shaft on spinners.

2. Lightly touch against squaring disc.

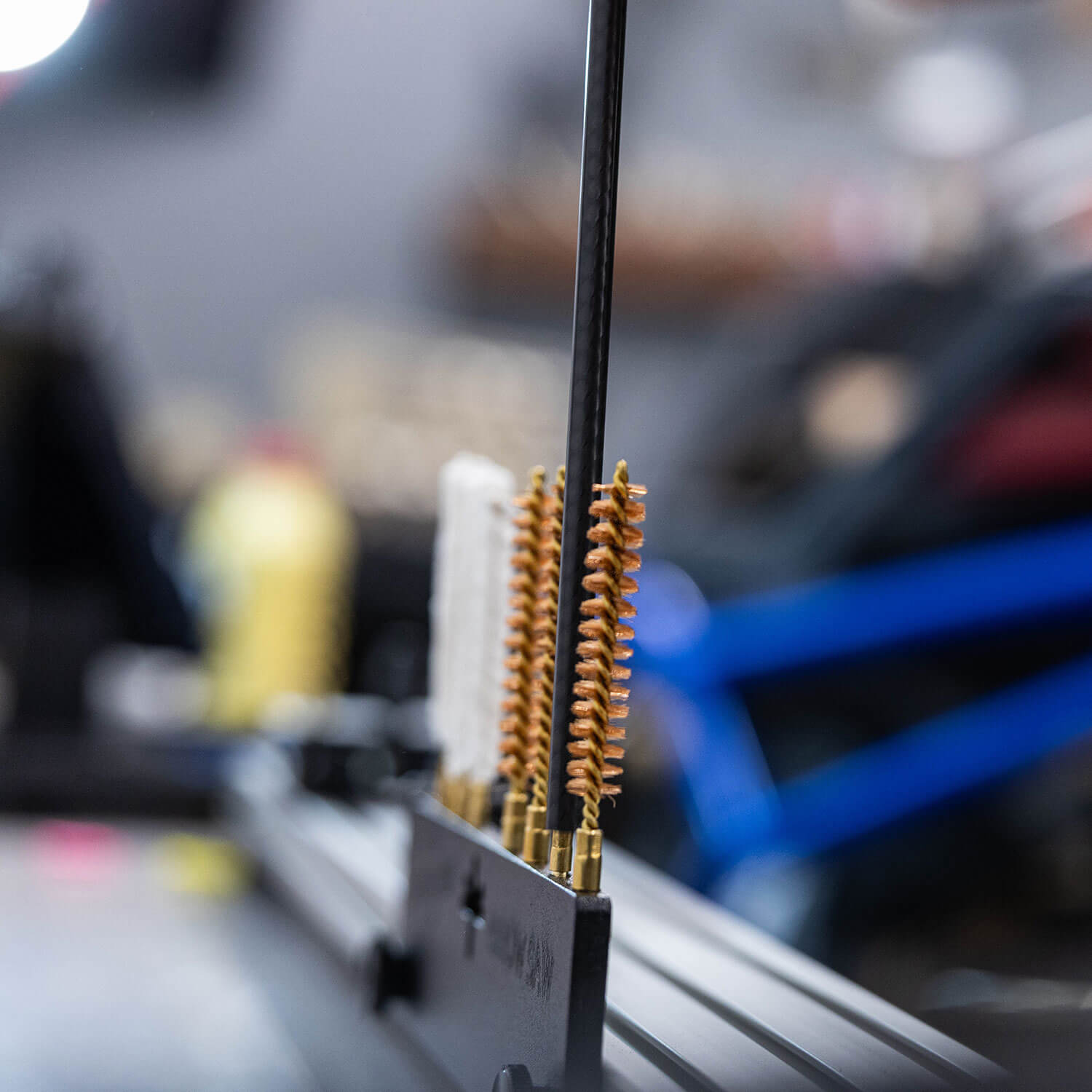

3. Use brushes, swabs, and deburring tool for clean finish.

4. Check straightness with spinners.

✅ Your shaft is now precision cut, squared, and ready for use.

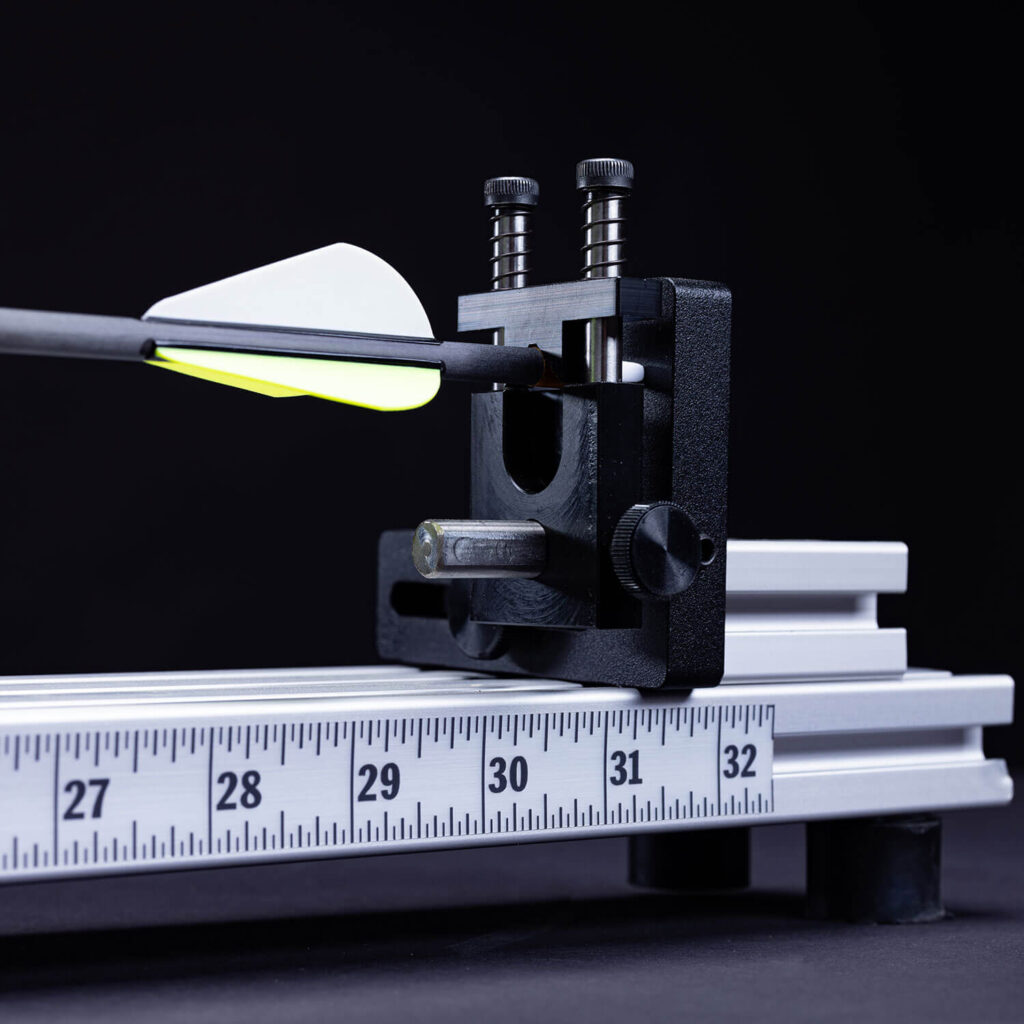

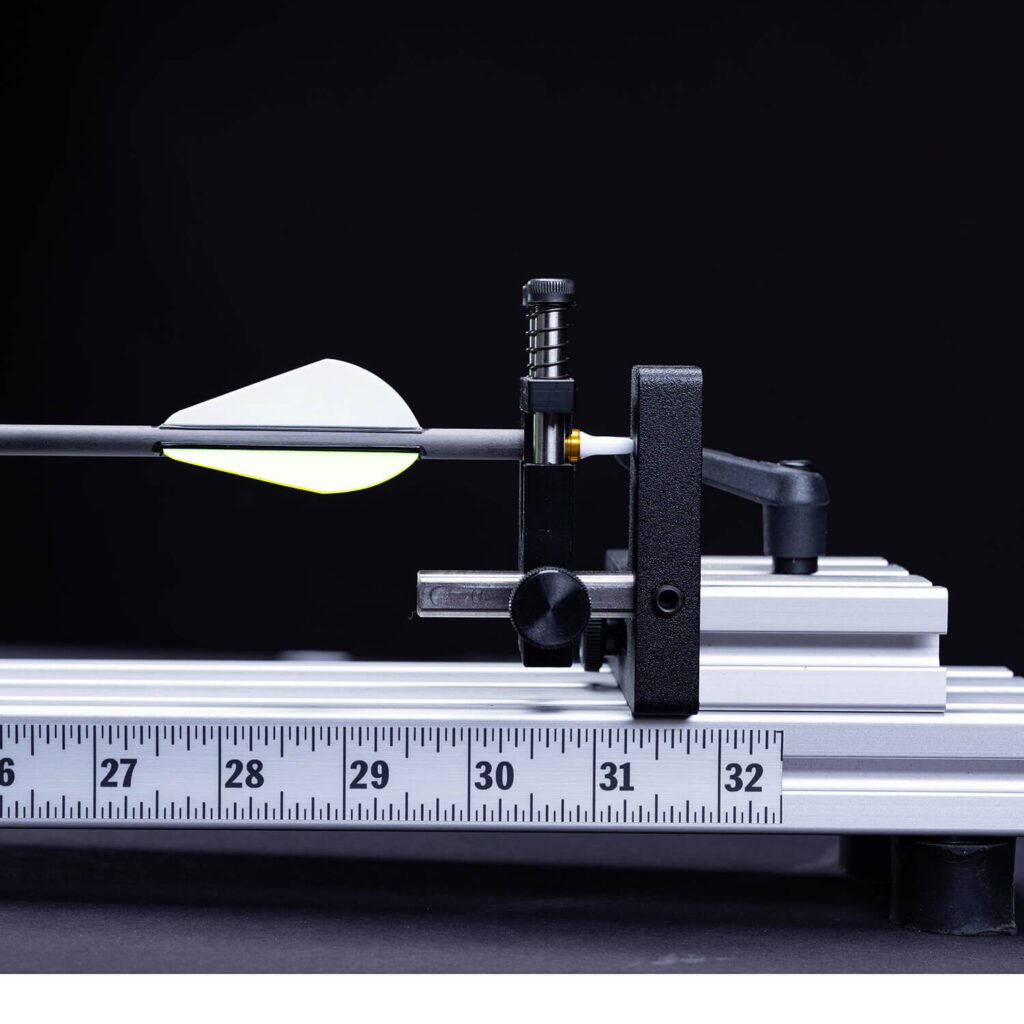

Cutting Pre-Fletched Arrows

1. Remove nock for accuracy.

2. If vanes interfere with the stop:

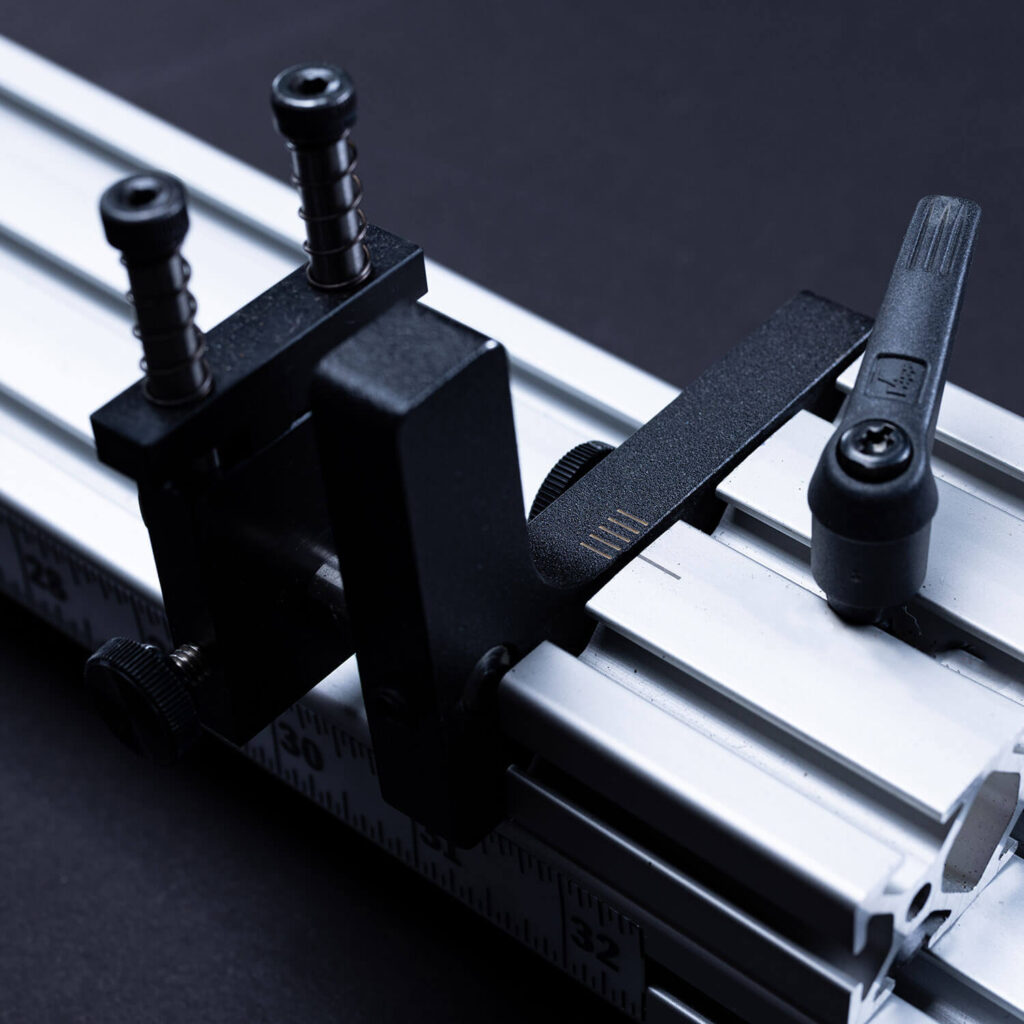

   • Loosen set screw with 1/8″ Allen wrench.

   • Slide holder back against stop.

   • Retighten screw.

3. Insert shaft and cut as normal.

Replacing the Blade & Sanding Disc

1. Remove Housing

• Detach vacuum hose, water dripper, and container.

• Loosen and remove shelf screws (5/32″ wrench).

• Loosen 2 housing screws (3/32″ wrench).

• Remove housing.

2. Replace Blade

• Insert Allen wrenches into front and back chucks.

• Loosen, remove old blade, install new blade.

• Tighten securely.

3. Replace Sanding Disc

• Clean chuck surface with solvent/cleaner.

• Peel adhesive backing, apply sanding disc flush.

• Press firmly to secure.

4. Reassemble

• Reinstall housing, align cutouts properly.

• Reinstall shelf and accessories.

• Reattach vacuum and water system.
