Deluxe 2nd Axis
$149.00

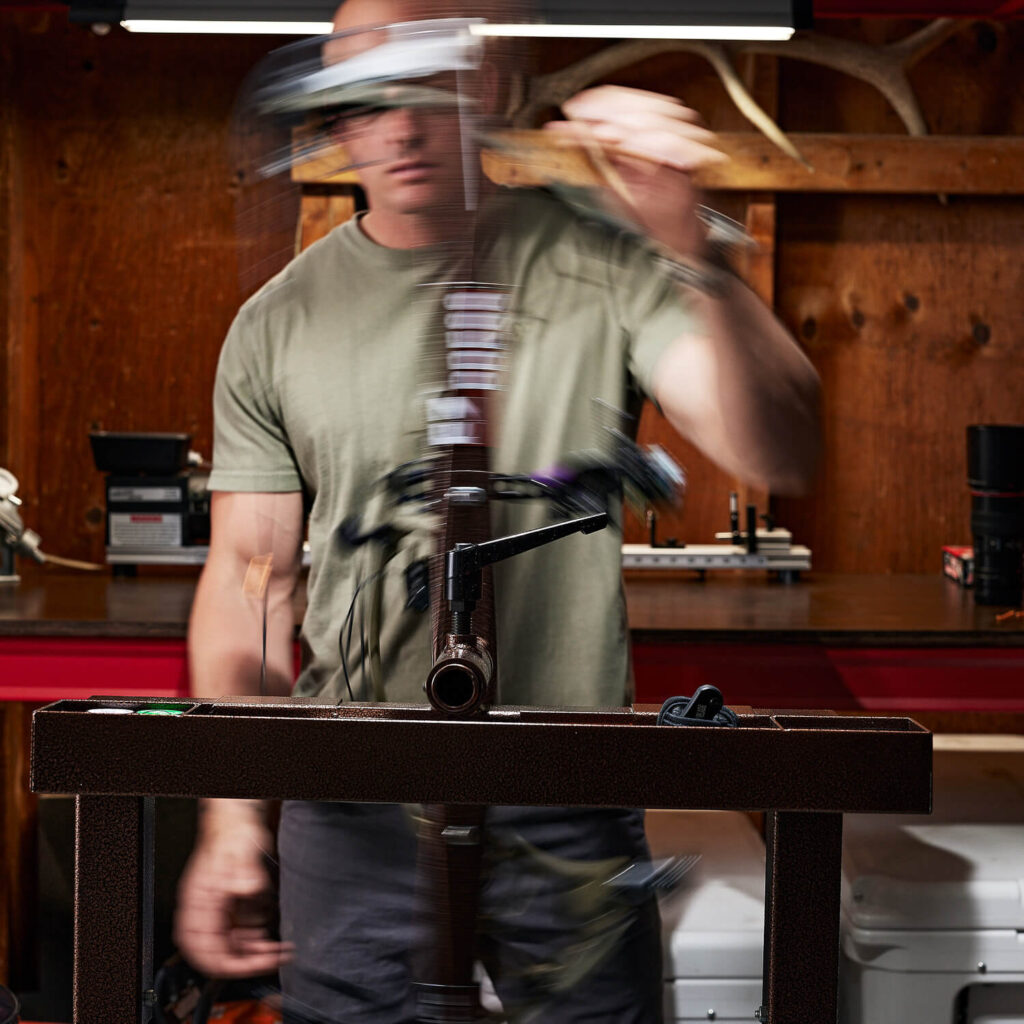

Upgrade your Deluxe bow press with the Deluxe 2nd Axis, designed to give you unmatched flexibility and precision during bow tuning. This innovative attachment allows for vertical, horizontal, and up-and-down pivoting, making it easier than ever to access small screws on both sides of your bow’s cams.
With the 2nd Axis installed, you can effortlessly rotate the press to level your arrow rest, set a nocking point, or fine-tune critical adjustments. The ability to tilt the press upward also brings your bow closer to eye level, giving you more comfort and control while working on delicate components.
Lead Time: 3 week(s)
- Provides vertical, horizontal, and up-and-down pivoting for greater flexibility
- Simplifies access to small screws on both sides of the bow’s cams
- Allows rotation of the press to level the arrow rest and set a nocking point
- Enables precise fine-tuning of critical adjustments
- Tilts upward to bring the bow closer to eye level for added comfort and control
- 1 qty. Deluxe 2nd Axis
- 1 qty. Adjustable Black Handle
- Standard Fit:
- Power Press Deluxe
- EZ Deluxe Press
- Ultimate Fit:
- Power Ultimate Deluxe
- Ultimate EZ Deluxe
- The Deluxe 2nd Axis is compatible with all Deluxe model LCA bow presses. Deluxe presses pivot in the center from a vertical to a horizontal position.
- The Deluxe 2nd Axis replaces the single axis that comes standard on a Deluxe LCA bow press.
A properly tuned setup is crucial for success in the field, covering every component. At LCA, we develop the most precise, reliable, and advanced tuning tools in the industry, ensuring you’re always ready when it counts.
American Made
The Deluxe 2nd Axis is proudly manufactured in our facility located in the state of Georgia, USA.
Hand-Assembled Craftsmanship
Each Deluxe 2nd Axis is crafted by hand, with genuine pride. Our hand-assembled process guarantees unmatched attention to detail and quality.
Robotic Precision Welded
Every weld on the Deluxe 2nd Axis is executed with robotic precision, ensuring unmatched consistency, strength, and a flawless finish every single time.
Archery Innovation
Innovation isn’t just part of what we do—it defines it. We’re redefining the standard for precision in modern archery.
Product Overview
The Second Axis Upgrade allows you to retrofit your Last Chance Archery press with a new pivoting mechanism for improved adjustment and accuracy. This guide walks you step-by-step through removing the old parts and installing the new upgrade.
1. Tools Required
- 3/8” wrench or socket
- Allen wrench (for set screws)
2. Installation Instructions
Step 1: Remove Back Bolts
- Using a 3/8” wrench, remove the bolts on the back of the press.
- Set the press aside once the bolts are removed.
Step 2: Remove Handle.
- Take the handle off the top of the pivot assembly
Step 3: Remove Old Collar
- Loosen the set screws on the back of the existing “helicopter blade” style collar.
- Slide the collar out of place.
Step 4: Install New Second Axis Collar
- Insert the new second axis collar into position.
- It may take light pressure or adjustment to align it fully.
- Once seated, slip the collar completely into place.
Step 5: Tighten Set Screws
- Re-tighten the set screws firmly to lock the new collar in place.
Step 6: Reinstall Handle
- Slide the handle back onto the pivot assembly.
- Tighten securely.
Step 7: Reattach Back Bolts
- Replace the 3/8” bolts and nuts at the back of the press.
- Tighten them down as firmly as possible to ensure stability.
Completion
Once the bolts are tight, the handle is secure, and the set screws are snug, your Second Axis Upgrade installation is complete. Your press is now ready to use with enhanced precision.
✅ Tip: Double-check all bolts and screws after installation to ensure maximum safety and performance.
Videos

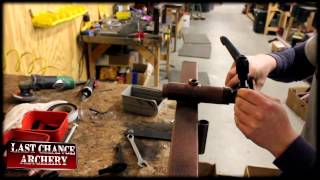

Deluxe 2nd Axis installation!
Here is the instructional video for installing our new Deluxe 2nd axis to your original deluxe press!!!
Deluxe 2nd Axis HD
Check out our new Deluxe 2nd Axis demonstrated by George Ryals with Archery Learning Center…
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Bow Press Fit | Standard, Ultimate |
2 reviews for Deluxe 2nd Axis
- Color: Copper Vein (to match your LCA press)
- Material: Steel
- Finish: Scratch-Resistant Powder Coat
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Bow Press Fit | Standard, Ultimate |
2 reviews for Deluxe 2nd Axis
-
Deluxe 2nd Axis
Product works great. Allows any angle to work on your bow.
-
Fantastic
Love the fact I can get to any part of a bow with ease. Simple to set up and heavy duty like everything else they sell. Very impressed!!
