FlightCheck – Vise Mount

Name: FlightCheck - Vise Mount - Last Chance Archery
SKU: FVM1001
Price: 49.00 USD
Availability: InStock

$49.00

The FlightCheck – Vise Mount transforms your FlightCheck into a compact, highly adaptable paper tuning station. Designed as an add-on attachment, it integrates seamlessly with the LCA Revolution Vise clamp, providing archers with a stable, adjustable platform for paper tuning. Ideal for those who want the precision of the FlightCheck without the footprint of a stand or wall mount, this mount offers stability, flexibility, and professional-level tuning performance.

Lead Time: 3 week(s)

Features

What's Included

Compatibility

The FlightCheck – Vise Mount is the perfect space-saving option for archers who already have the LCA Revolution Vise. It transforms your vise clamp into a paper tuning station, keeping the FlightCheck secure, adjustable, and ready to use. This setup delivers professional-level results without needing a floor stand or wall mount.

American Made

Each FlightCheck – Vise Mount is proudly manufactured in our facility located in the state of Georgia, USA.

Archery Innovation

Innovation isn’t just part of what we do—it defines it. We’re redefining the standard for precision in modern archery. The FlightCheck series of products is the next evolution in paper tuning—engineered to eliminate frustrations, deliver more precise results, and give archers the confidence to fine-tune with ease.

Strong & Durable Materials

Each FlightCheck – Vise Mount is built like a tank, so you can fully trust that this product will stand the test of time.

Workshop-Tested Durability

All FlightCheck products have undergone rigorous testing to withstand the demanding conditions of the workshop environment.

FlightCheck – Vise Mount Installation & Setup Instructions

Package Contents

Each FlightCheck – Vise Mount kit includes:

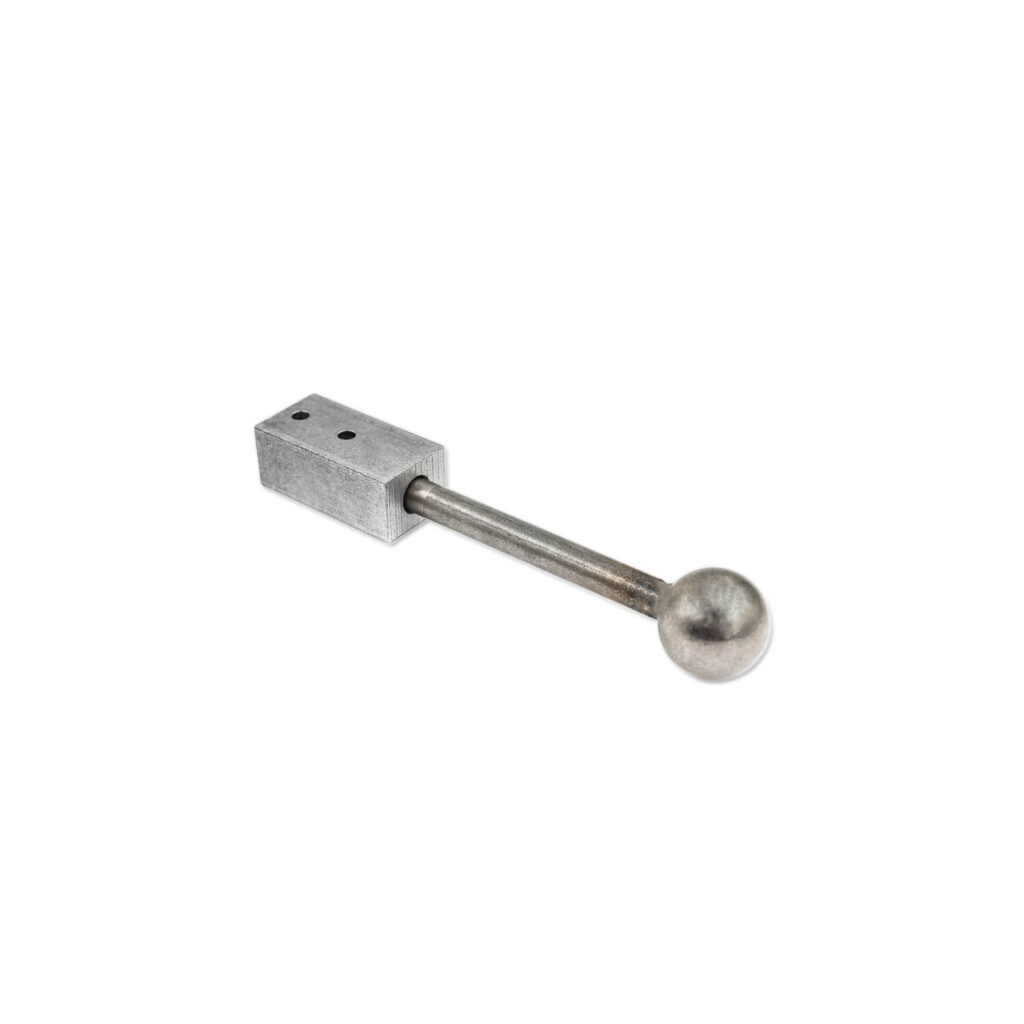

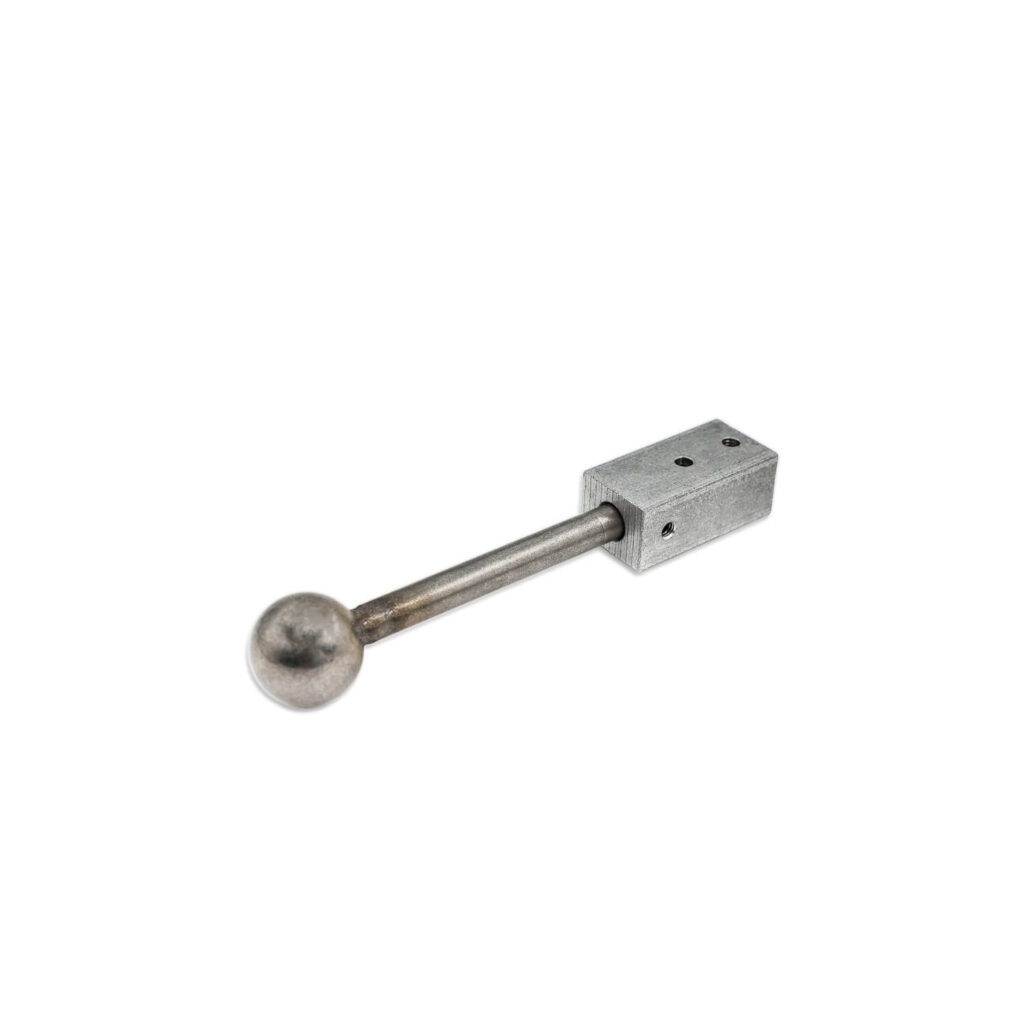

1 qty. Vise Mount Ball Stud

1 qty. Vise Mount Block

1 qty. Set Screw

2 qty. 1/4″) Bolts

2 qty. (1/4″) Nuts

Pre-Installation Preparation

Ensure your LCA Revolution Vise clamp is securely mounted to a bench, table, or bow press.
Ensure there’s always an archery target behind the area you plan to mount your paper tuner, ensuring safety.
Clear the work area to prevent interference with rotation or paper feed.

Mount the Revolution Vise Clamp (Skip if already installed)

Secure the Revolution Vise clamp to a stable, flat surface (bench, table, or bow press).
Confirm the clamp jaws open and close freely.
Open the mounting clamp, and ensure the mounting plate is open wide enough to mount onto your surface.
Slide the clamp onto the mounting surface and rotate the handle, which pushes the mounting plate into position.
Tighten until the clamp is securely fastened.
For portable setups, ensure the vise base is firmly tightened.

You can mount the FlightCheck frame to the vise mount first, or you can install the vise mount into your clamp and then attach the FlightCheck frame 2nd.

Attach the FlightCheck Frame

Align the holes at the base of the FlightCheck frame with the holes inside the vise mount block.
Align the holes, insert the bolts, and secure using the included lock nuts.
The FlightPaper printed shooting dots should face outward toward the shooter.
Do not overtighten; snug contact is sufficient.
Confirm the FlightCheck is stable and balanced before use.

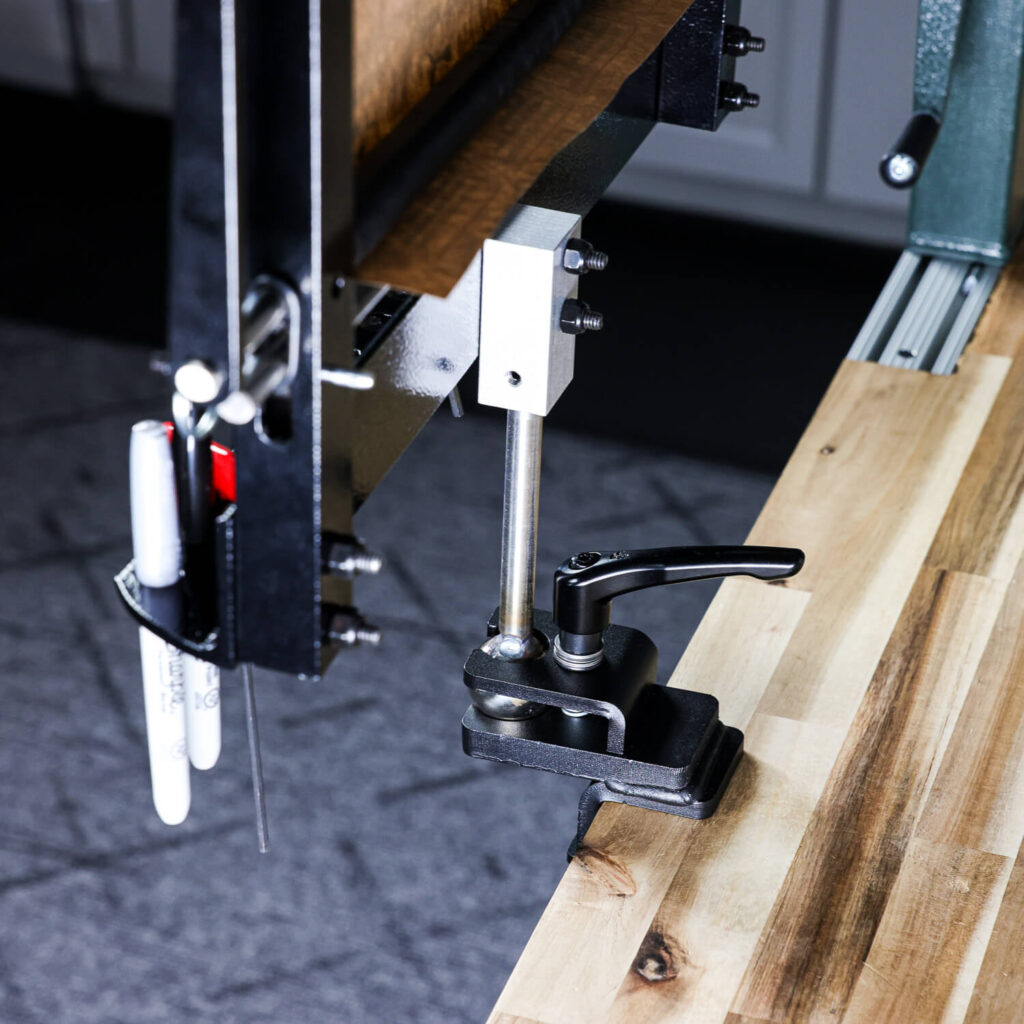

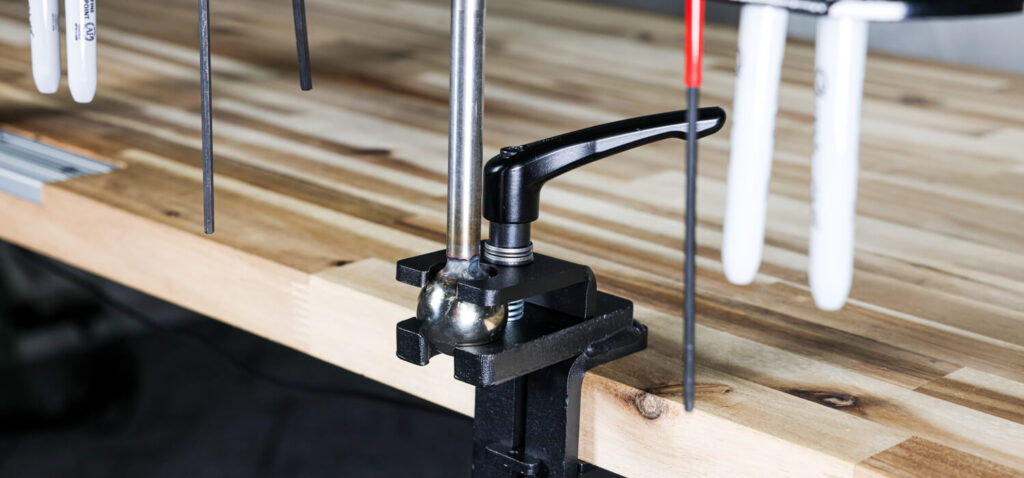

Install the Vise Mount into the Clamp

Insert the 1⅜” ball end of the FlightCheck Vise Mount into the jaws of the Revolution Vise clamp.
Tighten the vise handle until the ball is snug, yet still allows for smooth rotation and tilt of the mount.
Adjust the shaft angle to position the mount vertically upright or slightly tilted based on your tuning preference.
Tip: For ideal tuning height, position the ball joint so the FlightCheck’s paper window will align with the archer’s chest level once attached.

Adjust and Lock Position

Loosen the Revolution Vise handle slightly to reposition the frame’s angle or orientation.
Once correctly aligned, tighten the handle until the mount is securely in place.
The ball joint allows 360° rotation and tilt adjustment, enabling fine-tuning of the angle for optimal viewing and shot clearance.

Operation

Once installed, load FlightPaper (see FlightPaper loading instructions).
Stand approximately 12 feet behind the tuning window when taking the shot.
The vise setup allows quick repositioning between shooters or bow styles.
When finished, you can easily remove the FlightCheck by loosening the set screw and lifting the frame off.

Maintenance & Care

Wipe the mount and ball joint with a clean, dry cloth after use.
Do not lubricate the ball surface—clean, dry friction ensures secure clamping.
Inspect the set screw and knob for tightness before each session.
Store the mount indoors to prevent it from corroding.

Safety Notes

Always ensure the vise and mount are securely clamped before firing.
Do not overtighten the ball joint; excessive pressure may restrict adjustment or damage the clamp.
Keep your hands clear of moving parts when tightening or loosening the vise.
Confirm that the shooting lane behind the FlightCheck is clear and safe before use.

Videos

FlightCheck – Vise Mount Tricks, Tips, & Instructions

Take full advantage of your Revolution Vise setup.

The FlightCheck – Vise Mount lets you swap between your vise head and your FlightCheck in seconds — no tools or wasted space. Designed to integrate seamlessly with the Revolution Vise clamp, it converts your existing vise setup into a dual-purpose tuning powerhouse.

Built from heavy-duty stainless steel & aluminum — proudly made in Georgia, USA.

FlightCheck Tricks, Tips, & Instructions

Get the most out of your FlightCheck with this detailed tricks, tips, & instructions video.

Paper tuning shouldn’t be a chore — it should be clean, consistent, and frustration-free. The FlightCheck is a professional-grade paper tuning system built for precision. Whether you’re setting up at home or running a full-scale pro shop, it provides a rock-solid platform for diagnosing arrow flight. With dual bow holders, adjustable rollers, and pre-printed FlightPaper rolls, this USA-made system delivers quick, repeatable feedback shot after shot.

Built from heavy-duty steel with a flat black, scratch-resistant powder coat — proudly made in Georgia, USA.

Introducing the FlightCheck — the next evolution in paper tuning.

Built for precision, accuracy, and performance, the FlightCheck is designed to deliver cleaner results, faster setup, and consistent paper tuning from the shop to the range.

Paper tuning shouldn’t be a chore—it should be simple, accurate, and efficient. The FlightCheck was designed from the ground up to eliminate the frustrations that make paper tuning a headache. No more shooting through the same hole without a reference point. No more guessing which way to move your rest. No more digging for tools or fighting with loose paper.
