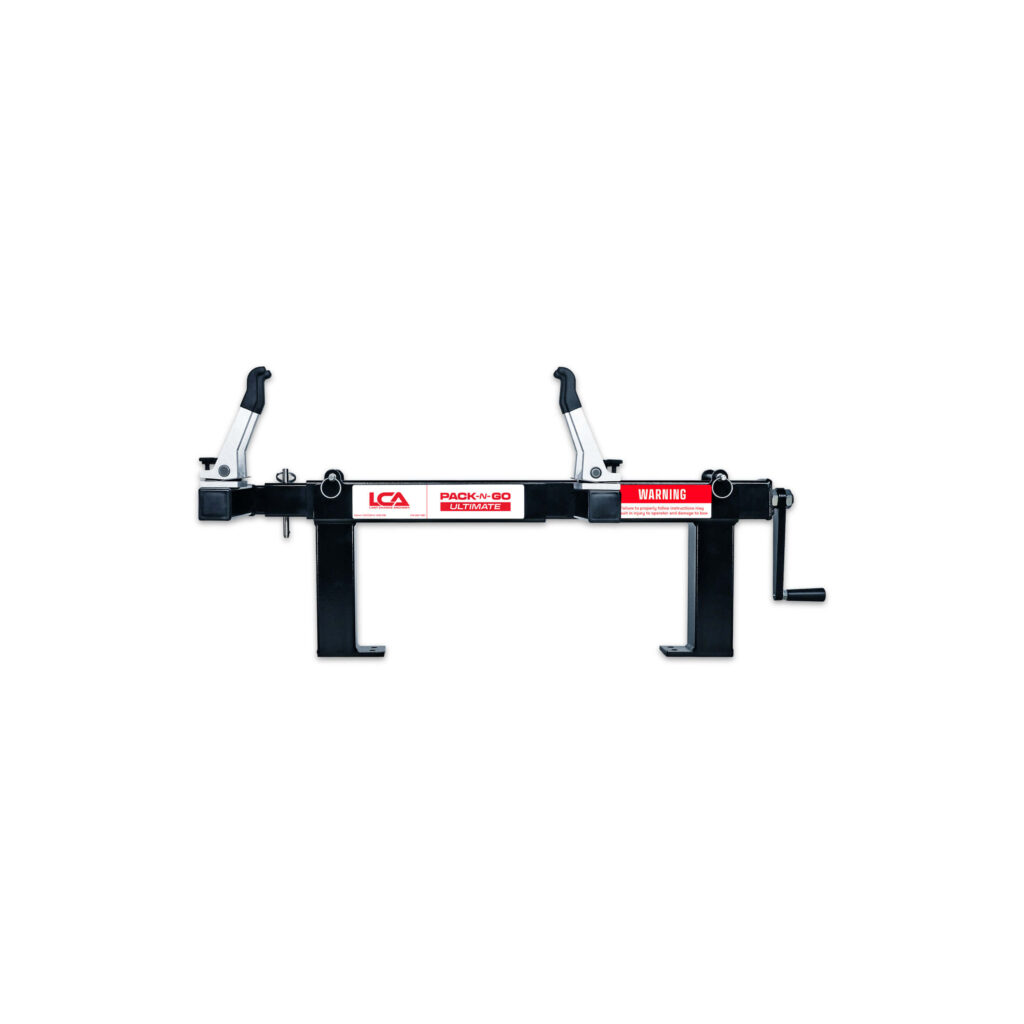

Pack-N-Go Ultimate Press — Setup & Operating Instructions

Unboxing Your Pack-N-Go Ultimate

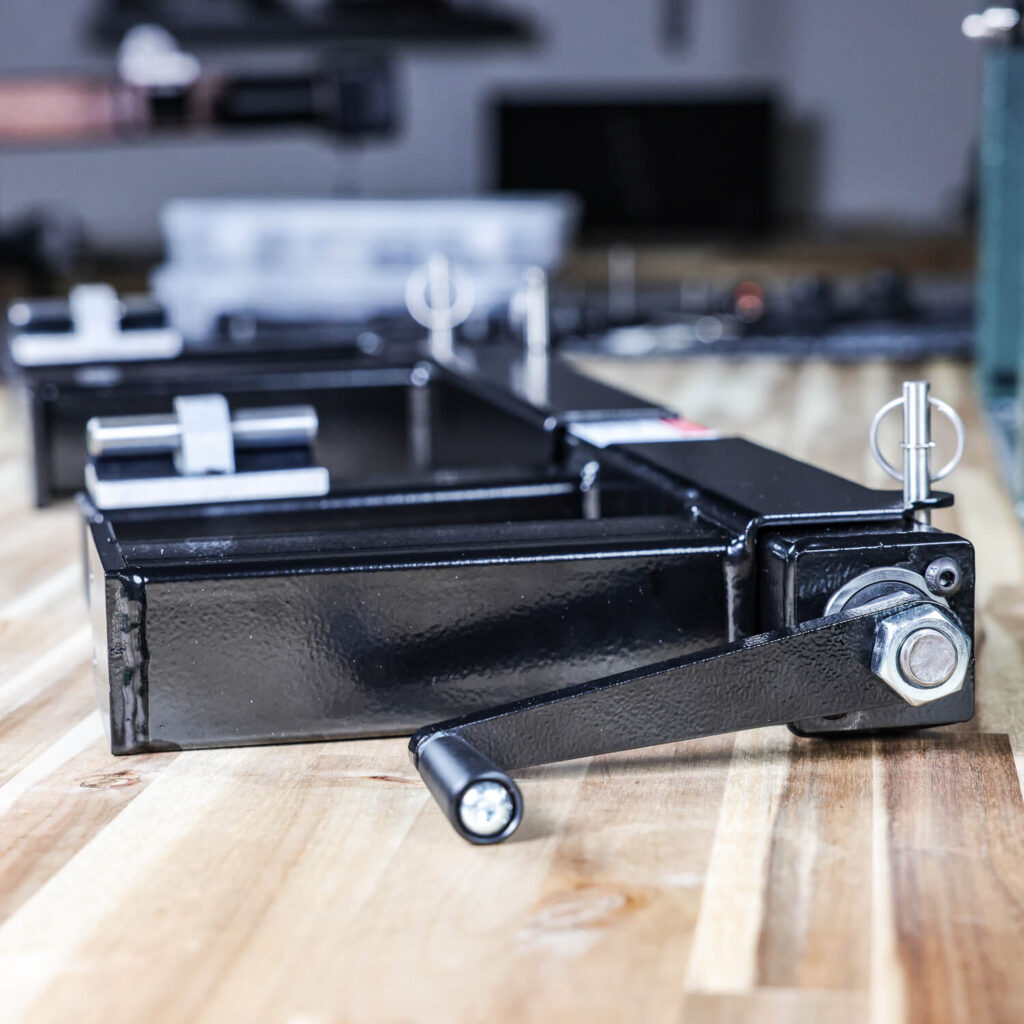

Main press body with hand crank installed
Two sliding press arms with finger blocks
Four press fingers
One draw-stop finger
Center pin adjustment system
Two detachable mounting brackets
Four mounting bolts with washers
Compact carrying case

Mounting & Setup

Choose a sturdy, level surface suitable for pressing
Attach the mounting brackets to the press base with the provided bolts and washers
For permanent bench mounting, install with lag bolts
For temporary setups, use heavy-duty C-clamps and check tightness frequently
Confirm that the press sits stable and level before inserting a bow or crossbow

Pro Tip: The Pack-N-Go Ultimate pairs perfectly with the LCA Portable Bench Mount for fast setup without permanent installation

Assembly for Travel or Storage

To assemble for use, slide both press arms into the main body until the spring pins click into place
Tighten the side knobs to secure the arms

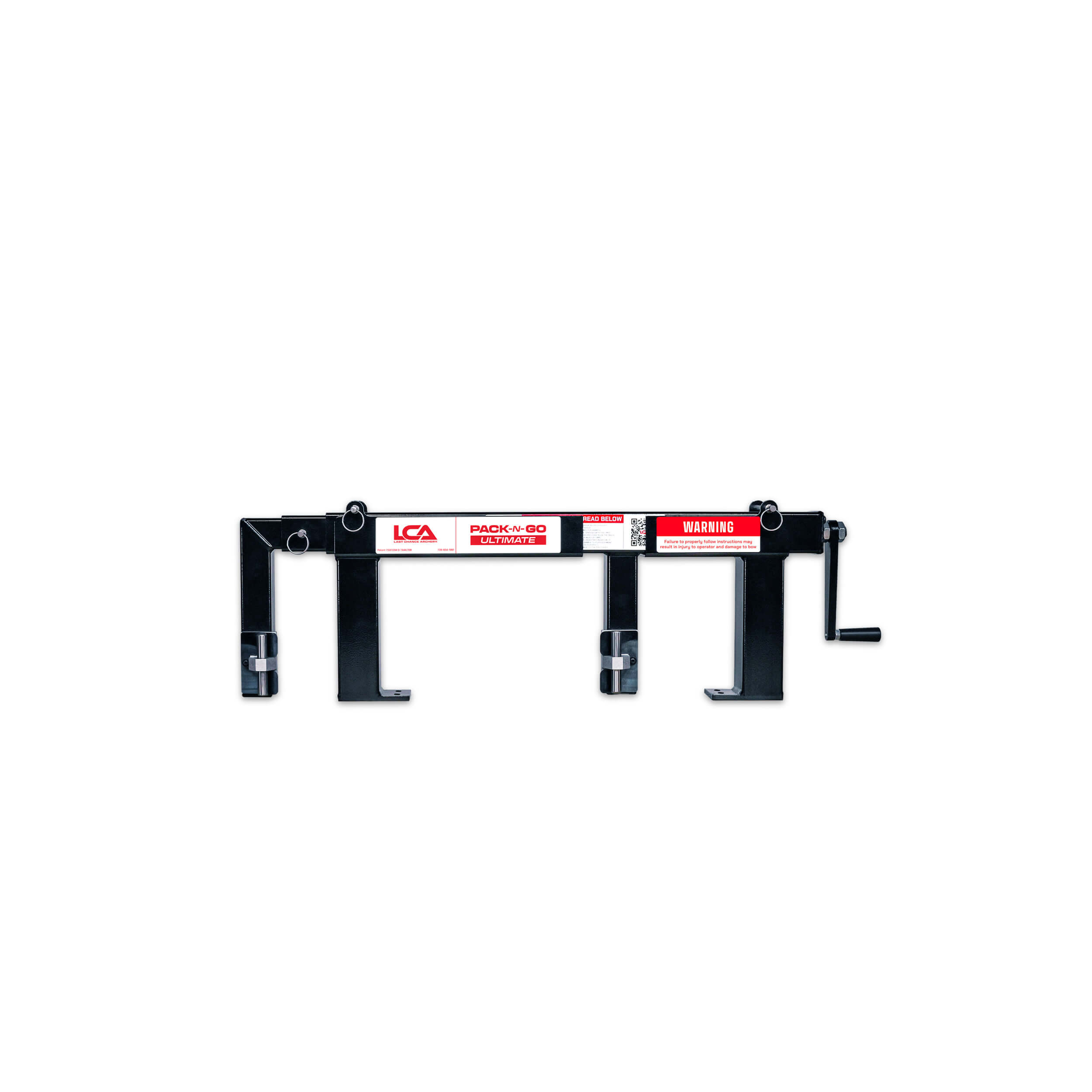

To disassemble for travel, loosen the knobs, press the spring pins, and slide the arms out
Collapse the center section by pulling the center pin and sliding the two halves together

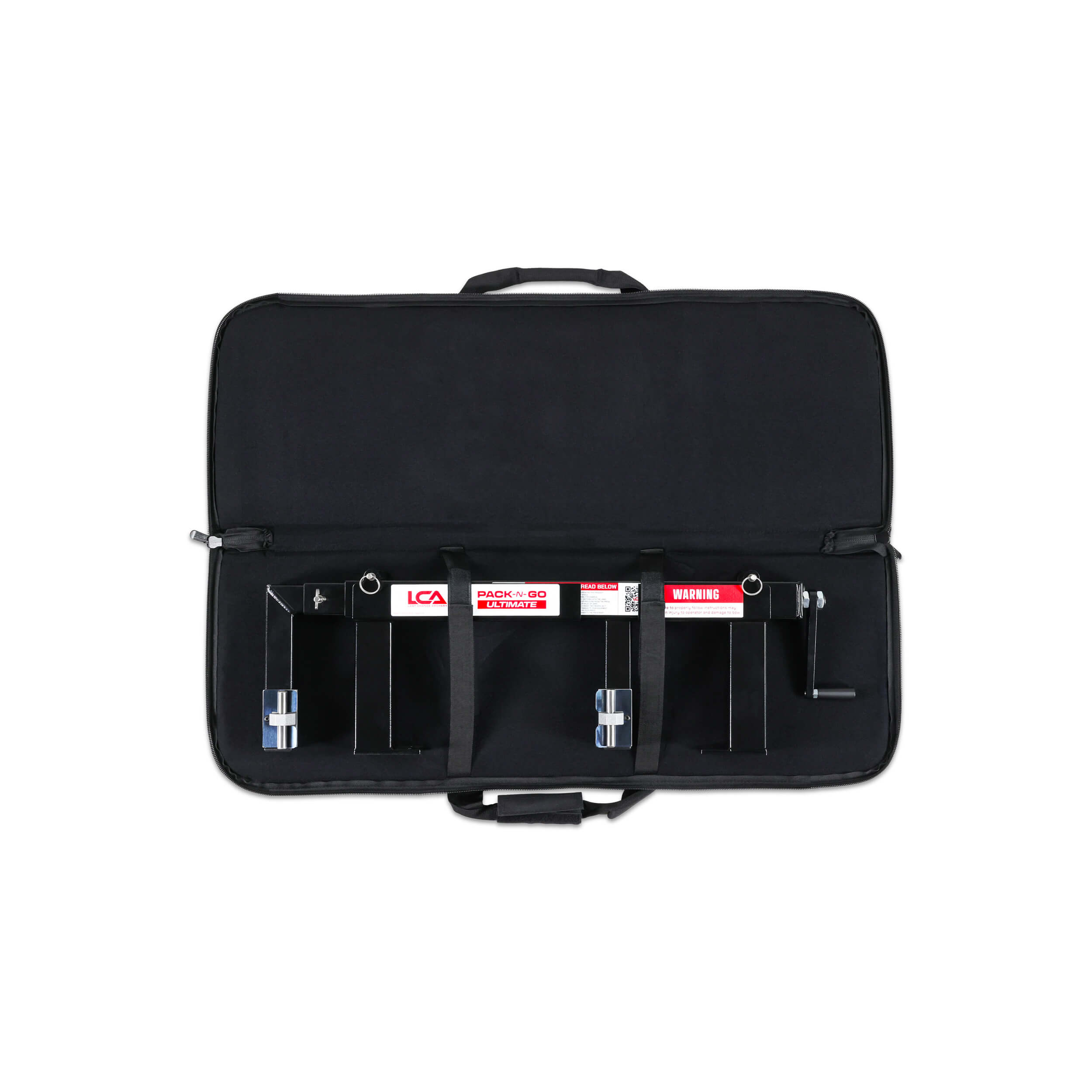

Store all components in the compact carrying case

Important: Always release all limb tension before collapsing or disassembling the press

Collapsing the Press for Crossbows

Locate the center pin in the middle of the press body
Pull the pin outward to unlock the adjustable center section
Slide the two halves together until the desired width is reached
Re-insert the pin securely before pressing
For crossbows narrower than 10 inches, attach the Mini Xbow Adapter for proper limb support

Installing & Adjusting the Press Fingers

Press the spring-steel tab and slide each finger into its slot until it locks
Adjust finger spacing to match limb pocket width
Use the rear thumb screws to fine-tune limb-tip contact
Ensure each finger sits flush and evenly against the limb
Confirm balanced pressure with no twisting or side-loading
Mark your most common setups on the rails to simplify future use

Placing the Bow or Crossbow in the Press

Rotate the hand crank to open the arms until there is enough clearance
For compound bows, center the riser and rest limb tips evenly on the fingers
For crossbows, collapse the press to the appropriate width before placing the limbs
Use the Mini Xbow Adapter if the limb span is less than 10 inches
Ensure the bow or crossbow is centered and level before tightening
Turn the crank slowly until all fingers make light, even contact with the limbs

For standard-limb crossbows, position the stock facing upward
For reverse-limb crossbows, position the stock facing downward

Safety Tip: Confirm full limb support and ensure no cables or cams contact the press

Pressing the Bow or Crossbow

With the setup centered and secure, rotate the hand crank clockwise to compress the limbs evenly
Stop once the string and cables are fully relaxed for service
Perform timing, tuning, string installation, or cable replacement
Rotate the crank counter-clockwise slowly to release pressure until the limbs return to rest

After Use & Maintenance

Wipe the press clean after each use
Lightly lubricate the lead-screw threads
Inspect bolts, knobs, and the center pin for wear or looseness
Check spring pins and rails for debris before collapsing the press
Store all components disassembled in the carrying case

Troubleshooting

Press binds during cranking — contact LCA
Center pin difficult to pull or insert — debris or dry surfaces; clean and lubricate lightly
Uneven limb pressure — finger spacing needs adjustment; use thumb screws for alignment
Press shifts during operation — loose mounting bolts or unlevel surface; re-tighten and level

Specifications & Compatibility

Use — compound bows and crossbows
Minimum width — 11 inches (collapsed)
Axle-to-axle range for bows — 25 to 48 inches
Operation — manual hand crank
Mount type — removable brackets for bench or portable mounting
Finish — durable black powder coat
Accessories — Mini Xbow Adapter for narrow crossbows
Portability — break-down and collapsible-center design with travel case

Safety Guidelines

Always secure the press to a stable, level surface before use
Keep hands, tools, and cables clear while pressing
Do not exceed the rated limb weight or press width
Confirm the center pin is fully seated before pressing
Release pressure slowly and evenly every time
Always wear safety glasses
Disassemble only when limbs are completely relaxed
